109101.00 LEESON 1HP 36VDC PERMANENT MAGNET MOTOR C4D18FK1

1HP LEESON 1750RPM 56C TEFC 36VDC PERMANENT MAGNET MOTOR 109101.00

Part Number:

109101.00

Model/Spec Number:

C4D18FK1D

Manufacturer:

Regal MOQ

109101.00 LEESON 1HP Low Voltage NEMA Frame DC Motor is designed specifically for battery, solar, or generator supplied applications. Dynamic braking and reversible rotation capabilities.

Ordering Notes

MOQ: This product has a minimum quantity purchase and is subject to production times. Average build times are 4-6 weeks after order received.

MSRP: $1,624.00

Regular Price

USD

617

QTY

Shipping Details

Free No Rush Shipping

Weight:

39 lbs

Dimensions:

13 x 24 x 13 inches

HS Code:

8501.32.2000

UPC:

691720347430

Technical Details

Specifications

Application:	General Purpose
Output HP:	1
Output KW:	0.75
Output RPM:	1750
Frame NEMA:	S56C
Mount NEMA:	C-Face With Base
Input Voltage DC:	36
Full Load Amps:	25.5
Winding:	Permanent Magnet
Enclosure NEMA:	TEFC

Documentation

Product Information Packet

Additional Information

LEESON 36V Low Voltage NEMA Frame DC Motor is designed specifically for battery, solar, or generator supplied applications. Dynamic braking and reversible rotation capabilities.

Features:

5/8" Keyed output shaft
Durable rolled steel frame
C-face mounting provisions with removeable base

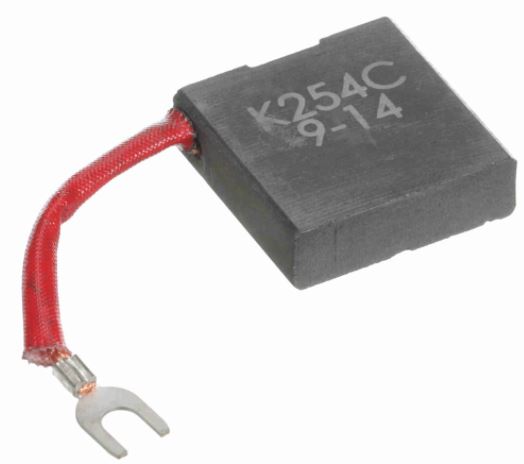

Oversized brushes for long life
External access to brushes allows for easy replacement
Heavy-duty, stamped steel, bolt on base (removable)
Rugged die cast endshields with steel bearing inserts
Permanently lubricated sealed ball bearings
Convert to NEMA 48 frame base dimensions or NEMA 42/48 frame C face dimensions with modification kits
High starting torques for heavy load applications
Linear speed torque characteristics throughout the speed range
Capable of dynamic braking for faster stops
Reversible rotation
Simple two lead connection
