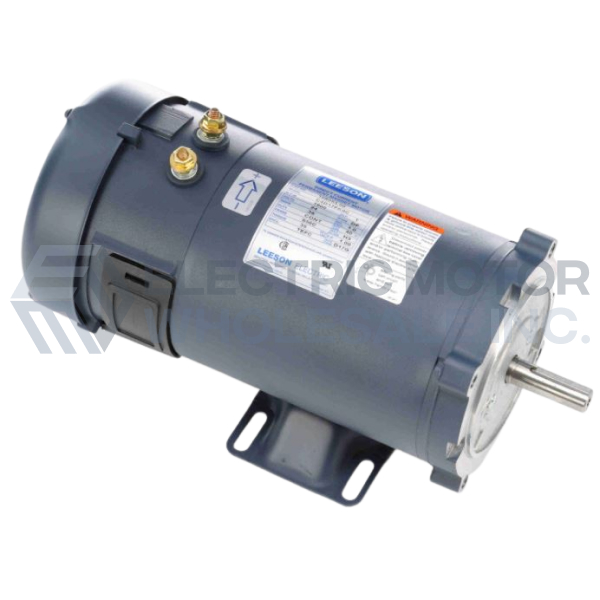

LEESON Low Voltage NEMA Frame DC Motors

LEESON NEMA FRAME LOW VOLTAGE 12, 24, 36, & 48 DC MOTORS

These Low voltage permanent magnet DC motors are suitable for installations having battery or solar powered operation, or generator supplied low voltage DC.

Mechanical Features: Unique brush holder design provides easy access to brushes and integral, constant pressure brush/spring assembly for servicing. Larger over-sized brushes assure longer brush life. Heavy-duty, stamped steel, bolt-on base (removable). NEMA C face mounting flange at no additional cost. High strength rolled steel frame. Rugged die cast aluminum endshields with steel bearing inserts. Permanently lubricated sealed ball bearings. May be converted to NEMA 48 frame base dimensions or NEMA 42/48 frame C face dimensions using modification kits by clicking this link.

Electrical Features: High starting torques for heavy load applications. Linear speed/torque characteristics over entire speed range. Capable of dynamic braking for faster stops. Reversible rotation and simple two-lead connection. Convenient wiring access.
