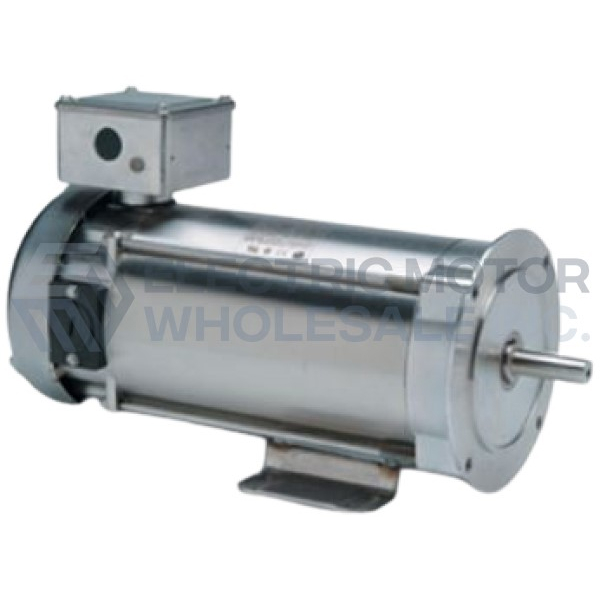

1HP LEESON 1750RPM 80D IP55 180VDC IEC PERMANENT MAGNET MOTOR 109077.00

LEESON PREMIUM DC STAINLESS IEC Frame Motors are designed specifically to meet the demanding sanitation requirements of the pharmaceutical, food processing, and beverage industries. These motors are also ideal in clean room and severe chemical-processing applications involving frequent washdown with nitric acid and caustic lye. In fact, WASHGUARD All-Stainless Motors include IEEE 841 severe-duty features right out of the box!

Mechanical Protection Features:

• All exterior components are 300-series stainless steel
• Nothing on the exterior of the motor is painted or coasted in any way
• All sealing components are Viton for superior chemical resistance.
• Full fact nameplate is laser etched on the motor frame - no separately attached nameplate to trap dirt or contaminants.
• Endshields are O-ring sealed to the frame
• Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
• Removable hydrophobic breathers in opposite shaft endbell and conduit box equalize pressure without allowing moisture to enter
• Exterior fastener use minimized reducing the number of entry point for moisture. There are no holes in the frame for attaching a nameplate. Bearing lock screws are located inside the motor and the conduit box mounted screws ave been eliminated
• Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
• Interior coatings applied to armature and frame/magnet assemble protect against corrosion
• Brush tubes are sealed with Viton O-rings to keep moisture out
• New conduit box mounting system provides optimum sealing
• Easy to clean construction is BISSC Certified for bakery applications

Electrical Performance and Protection Features:

• Linear speed/torque characteristics over entire speed range
• Armature windings are immersed and cured in a polyester insulating varnish for extra moisture-resistance
• High starting torque for hard to start loads
• Use with LEESON SPEEDMASTER DC motor controllers for optimum performance

Standards are Approvals:

• UL Recognized and CSA certified.
• Listed under BISSC authorization number 769

NOTES:

• Base is welded to frame and not removable.
