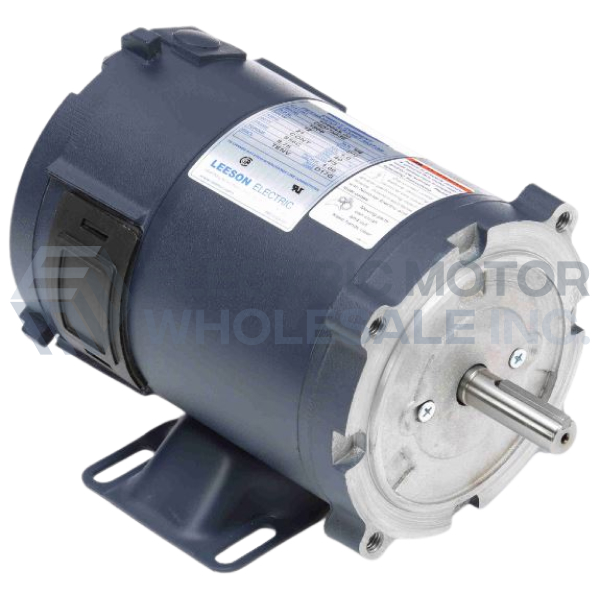

1/3HP LEESON 1750RPM 56C TENV 24VDC PERMANENT MAGNET MOTOR 108050.00

LEESON 24V Low Voltage NEMA Frame DC Motor is designed specifically for battery, solar, or generator supplied applications. Dynamic braking and reversible rotation capabilities.

Features:

• 5/8" Keyed output shaft
• Durable rolled steel frame
• C-face mounting provisions with removeable base
• Oversized brushes for long life
• External access to brushes allows for easy replacement
• Heavy-duty, stamped steel, bolt on base (removable)
• Rugged die cast endshields with steel bearing inserts
• Permanently lubricated sealed ball bearings
• Convert to NEMA 48 frame base dimensions or NEMA 42/48 frame C face dimensions with modification kits
• High starting torques for heavy load applications
• Linear speed torque characteristics throughout the speed range
• Capable of dynamic braking for faster stops
• Reversible rotation
• Simple two lead connection
