1/3HP LEESON 1625RPM 48YZ TEAO 1PH MOTOR 103783.00

Catalog Number:  103783.00 - FREE Ground Shipping in USA
Model Number:  A4P17NZ132A
Description:  1/3HP,1625RPM,48YZ,TEAO,1PH,60HZ,VENTILATON
Ship Weight:  22 lbs.

LEESON Single Phase Ventilation Fan Motor is a totally enclosed, high efficiency, permanent split capacitor motor for direct drive exhaust ventilation fans in poultry and livestock houses. Because of the inherently low starting torque of this design, this motor is not suitable for belt-driven fan applications. It must be mounted in the air stream of the fan for cooling.

FEATURES:

  • Durable rolled steel frame
  • 1/2" Keyed output shaft
  • Dust-tight construction
  • Extended through-bolts for mounting, no base
  • Automatic overload protection
  • Built-in terminal panel for quick, easy connection
  • Non USA Manufactured, MX
Volts 115 Volts 230 Volts
F.L. Amps 3.25 F.L. Amps 1.65 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1625 Hertz 60
HP 1/3 Duty AIROVER TYPE PN
KW 0.25 Model # A4P17NZ132A
Frame 48YZ Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code D
Insul Class B Protection AUT LCK RTR ONLY Therm.Prot. A-A56227-52
Eff 100% 68 Eff 75%   PF 94
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 20 LB Enclosure TENV Lubrication POLYREX EM
Nameplate 92005-6 Mounting SPECIAL Rotation SELECTIVE CCW
Assembly   Shaft Dia.   Ext. Diag. A-005109-15
Cust Part No   Outline A-SS404023-575 Ext. Diag2

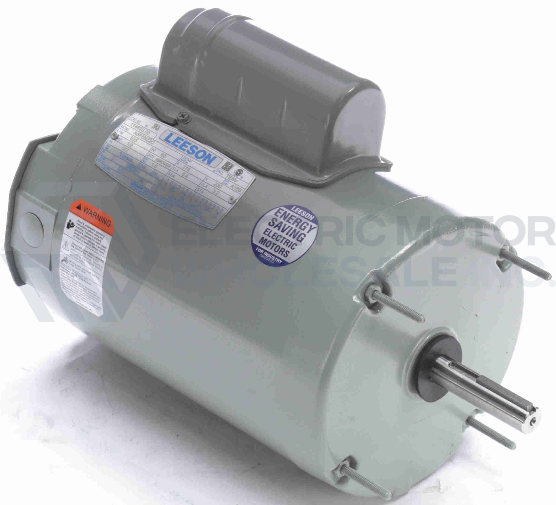

1/3HP LEESON 1625RPM 48YZ TEAO 1PH MOTOR 103783.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 103783.00
Stock # 103783
