1/2HP LEESON 1725RPM 56 TEFC 1PH MOTOR 102909.00
| Catalog Number: | 102909.00 |
| Model Number: | M4C17FH30B |
| Description: | 1/2HP,1725RPM,56,TEFC,1PH,60HZ |
| Ship Weight: | 22 lbs. |
APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
FEATURES:
- Durable rolled steel frame
- 5/8" shaft output diameter
- Manual Overload Protection
- High-quality ball bearings
- Capacitor Start
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval
- Non USA Manufactured, MX
- 1 year warranty
| Volts | 115 | Volts | 208-230 | Volts | |
| F.L. Amps | 8 | F.L. Amps | 3.8-4 | F.L. Amps | |
| S. F Amps | 8.4 | S. F Amps | 4.1-4.2 | S. F Amps | |
| RPM | 1800 | Hertz | 60 | ||
| HP | 1/2 | Duty | CONTINUOUS | TYPE | CF |
| KW | 0.37 | Model Number | M4C17FH30B | ||
| Frame | S56 | Serv. Factor | 1.15 | Phase | 1 |
| Max Amb | 40 | Design | O | Code | L |
| Insul Class | F | Protection | MANUAL | Therm.Prot. | CEJ63CA |
| Eff 100% | 66 | Eff 75% | PF | 61 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
| CC Number | NONE | CE | No | Bearing PE | 6203 |
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 22 LB | Enclosure | TEFC | Lubrication | STANDARD |
| Nameplate | A-92005-6 | Mounting | RIGID | Rotation | SELECTIVE CCW |

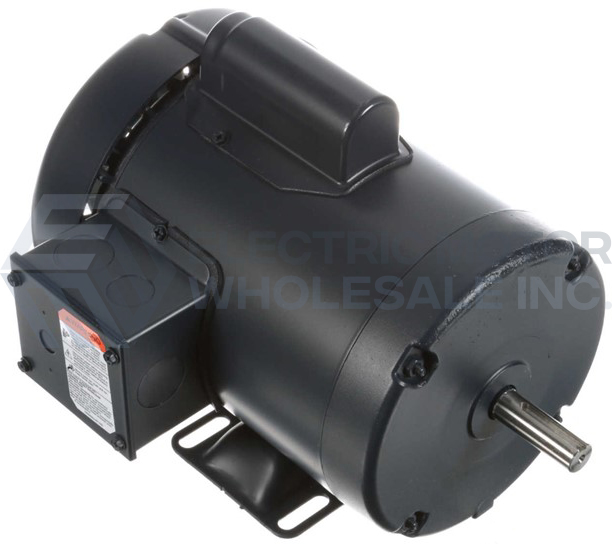

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 102909.00
Stock # 102909
