1/3HP LEESON 1625RPM 56C DP 1PH MOTOR 102017.00

Catalog Number:  102017.00 - FREE Ground Shipping in USA
Model Number:  M4P17DC29 B
Description:  1/3HP,1625RPM,56C,DP,1PH,INSTANT REVERSING
Ship Weight:  18 lbs.

LEESON Instant Reversing Motor is designed for use on "instant-reversing" parking gates, doors, slide gates, or other moderate starting torque instant reversing applications. Capable of frequency reversing service.


  • Starting torque approximately 150% of full load.
  • Not suitable for hard start applications.
  • Durable rolled steel frame
  • Resilient base for quiet operation
  • 5/8" Keyed output shaft
  • Instant "plug-reversing" with simple three-wire connection
  • Permanent split capacitor design
  • Manual reset overload protector
  • Non USA Manufactured, MX
Volts 115 Volts   Volts 115
F.L. Amps 4.2 F.L. Amps   F.L. Amps 3.8
S. F Amps   S. F Amps   S. F Amps
RPM 1625 Hertz 60/50
KW .25 Model # M4P17DC29B
Frame S56C Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code A
Insul Class B Protection MANUAL Therm.Prot. CEJ63CB
Eff 100%   Eff 75%   PF
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 21 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-77 Mounting ROUND Rotation SELECTIVE CCW

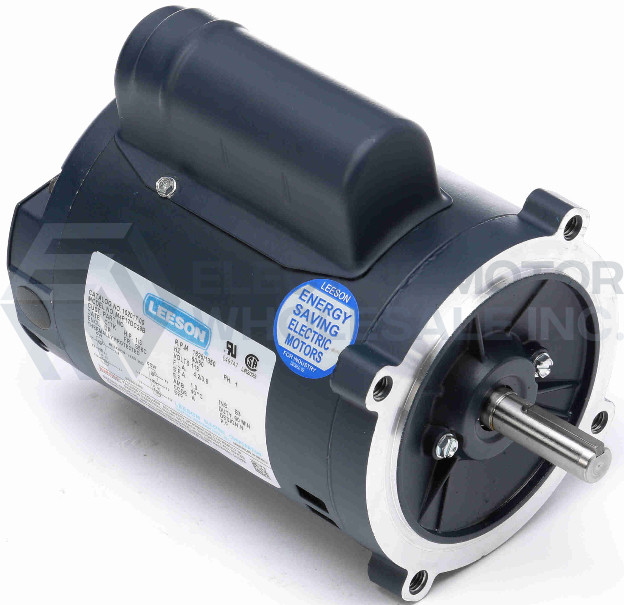

1/3HP LEESON 1625RPM 56C DP 1PH MOTOR 102017.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 102017.00
Stock # 102017
