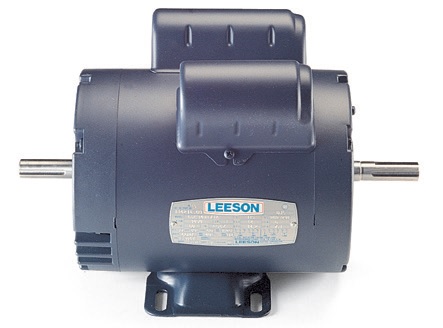

3/4HP LEESON 3450RPM 48Z DP 1PH MOTOR 101782.00
3/4HP LEESON 3450RPM 48Z DP 1PH MOTOR 101782.00
Part Number:
101782Manufacturer:
Leeson ObsoleteManufacturer Part Number:
101782.00Click below to request an agent review potential options.
Shipping Details
Free No Rush Shipping
Dimensions:
12 x 20 x 12 inchesTechnical Details
Specifications
Application: | UNISAW, Wood Working |
Output HP: | 3/4 |
Output RPM: | 1900-4000 |
Frame NEMA: | 48Z |
Mount NEMA: | Base Mount |
Enclosure NEMA: | DP, OPEN, ODP, OPSB |
Voltage: | 460 |
Frequency (Hz): | 60 |
Manufactured Origin: | Made in USA |
Documentation
Additional Information
| Catalog Number: | 101782.00 Made in USA |
| Model Number: | C4C34DB15C |
| Description: | 3/4HP,3450RPM,48Z,DP,1PH,60HZ |
| Ship Weight: | 27 lbs. |
APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Designed for woodworking equipment such as table saws, planers, etc. Not for outdoor use without proper shielding or for use with harsh chemicals.
FEATURES:
- Made in the USA
- Steel Frame
- Rigid base
- Totally enclosed fan cooled
- Designed for woodworking applications
- Electronic starting switch
- High starting and breakdown torques
- 48 frame model has 1-1/2” long shaft by 1/2” Dia.
- Shaft extensions, each end, include keyway and flat, 90º apart
| Volts | 115 | Volts | 208-230 | Volts | |
| F.L. Amps | 9.8 | F.L. Amps | 4.8-4.9 | F.L. Amps | |
| S. F Amps | 11 | S. F Amps | 5.4-5.5 | S. F Amps | |
| RPM | 3600 | Hertz | 60 | ||
| HP | 3/4 | Duty | CONTINUOUS | TYPE | CD |
| KW | .56 | Model # | C4C34DB15C | ||
| Frame | 48Z | Serv. Factor | 1.25 | Phase | 1 |
| Max Amb | 40 | Design | N | Code | K |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | 70 | Eff 75% | PF | 72 | |
| UL | No | CSA | Yes | Bearing OPE | 6203 |
| CC Number | EXEMPT | CE | No | Bearing PE | 6203 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 27 LB | Enclosure | DP | Lubrication | VERIFY |
| Nameplate | A-92005-116 | Mounting | RIGID | Rotation | SELECTIVE CCW |
| Assembly | LO101782 | Shaft Dia. | 1/2 IN | Ext. Diag. | 005278.12 |
| Cust Part No | Outline | OL101782 | Ext. Diag2 | ||
| Packaging | B | Outline Dash No | Winding | CE482237 |
