1/4HP LEESON 1725RPM 48CZ TEFC 1PH MOTOR 101765.00

Catalog Number:  101765.00
Model Number:  C4C17FC10C
Description:  1/4HP,1725RPM,48CZ,TEFC,1PH,60HZ
Ship Weight:  17 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Durable rolled steel frame
  • 1/2" shaft output diameter
  • High-quality ball bearings
  • Capacitor start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 5.4 F.L. Amps 2.4-2.7 F.L. Amps
S. F Amps 5.6 S. F Amps 2.6-2.8 S. F Amps
RPM 1800 Hertz 60
HP 1/4 Duty CONTINUOUS TYPE CF
KW 0.19 Model Number C4C17FC10C
Frame 48CZ Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code M
Insul Class B Protection NOT Therm.Prot.
Eff 100% 56 Eff 75%   PF 54
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 17 LB Enclosure TEFC Lubrication STANDARD
Nameplate A-92005-12 Mounting ROUND Rotation SELECTIVE CCW

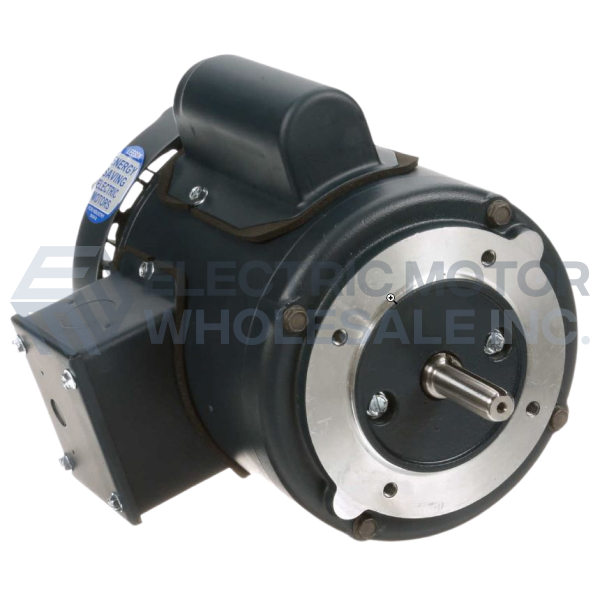

1/4HP LEESON 1725RPM 48CZ TEFC 1PH MOTOR 101765.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 101765.00
Stock # 101765
Price: $172.00
Compare At: $414.00
