1/3HP LEESON 3450RPM 48 TENV 1PH MOTOR 100362.00

Catalog Number:  100362.00 - FREE Ground Shipping in USA
Model Number:  C4C34NB2 E
Description:  1/3HP,3450RPM,48,TENV,1PH,60HZ
Ship Weight:  27 lbs.

LEESON Single Phase General Purpose Motor for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Durable rolled steel frame
  • 1/2" Keyed output shaft
  • Double-shielded ball bearings
  • Capacitor Start
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 4 F.L. Amps 2 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 1/3 Duty CONTINUOUS TYPE CN
KW 0.25 Model Number C4C34NB2E
Frame 48 Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 69 Eff 75%   PF 85
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE   Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 27 LB Enclosure TENV Lubrication STANDARD
Nameplate A-92005-12 Mounting RIGID Rotation SELECTIVE CCW

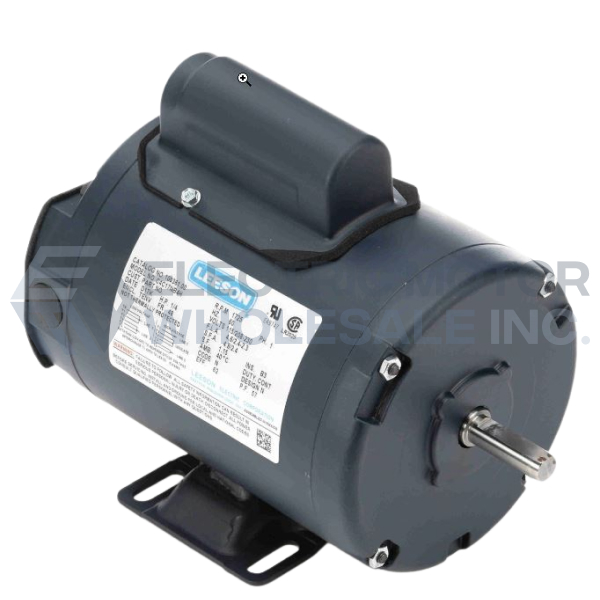

1/3HP LEESON 3450RPM 48 TENV 1PH MOTOR 100362.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 100362.00
Stock # 100362
Price: $165.00
Compare At: $415.00
