3/4HP LEESON 3450RPM S56C DP 1PH PUMP MOTOR 100205.00
3/4HP LEESON 3450RPM S56C DP 1PH PUMP MOTOR 100205.00

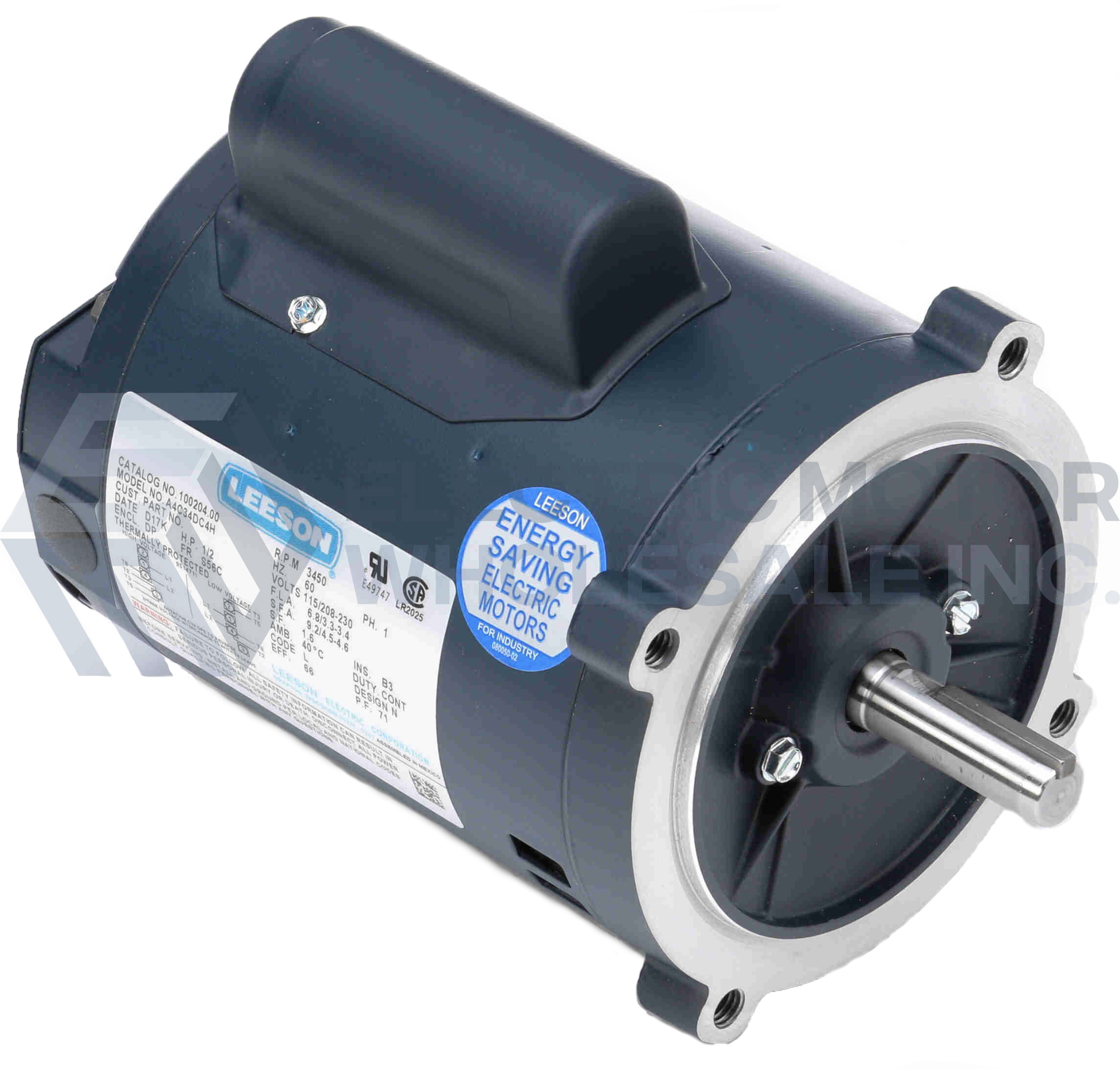

Picture is for reference only.
Part Number:
100205.00Manufacturer:
Leeson ObsoleteClick below to view suggested functional replacement.
Shipping Details
Weight:
26 lbsDimensions:
10 x 22 x 10 inchesHS Code:
8501.40.4040UPC:
691720004685Technical Details
Specifications
Application: | Jet Pump |
Output HP: | 3/4 |
Output KW: | 0.56 |
Output RPM: | 3450 |
Frame NEMA: | S56C |
Mount NEMA: | C-Face No Base |
Enclosure NEMA: | ODP |
Enclosure IEC: | IP22 |
Voltage: | 115/208-230 |
Frequency (Hz): | 60 |
Documentation
Additional Information
This product is non-certified for the use with a Pool.
No external provision for grounding lug provided.
LEESON Single Phase Jet Pump Motor with Keyed Shaft designed for commercial and industrial service.
FEATURES:
- NEMA 56C face mounting flange, no base
- 5/8" Keyed output shaft made of carbon steel
- Dual rotation
- Automatic overload protection
- 1.50 Service Factor
- Quiet flow-through ventilation system
- Vertical or horizontal mounting (drip-cover available).
- Double sealed, locked bearings on shaft end
- Terminal board with quick connects
- UL Recognized and CSA Certified
- Non USA manufactured, MX
