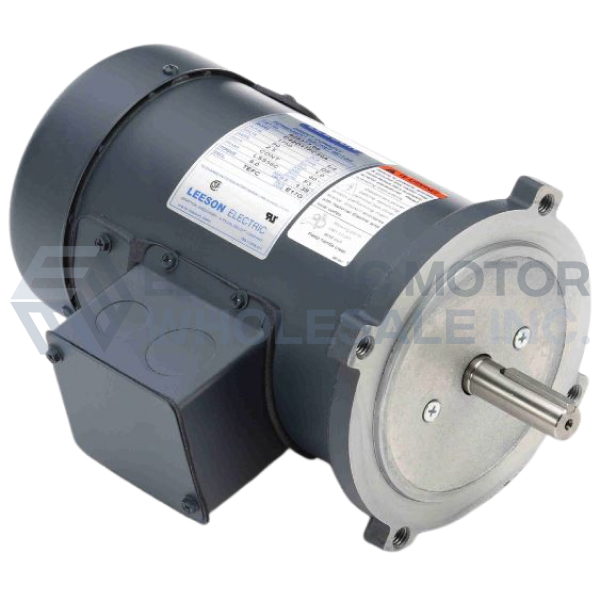

1/4HP LEESON 1750RPM 56C TEFC 90VDC PERMANENT MAGNET MOTOR 098377.00

1/4HP LEESON 1750RPM 56C TEFC 90VDC PERMANENT MAGNET MOTOR 098377.00


Part Number:

098377.00

Model/Spec Number:

C42D17FC29

Manufacturer:

Leeson Obsolete
098377.00 LEESON 1/4HP NEMA High voltage permanent magnet DC motors are typically used with and SCR (thyristor) controller in applications requiring adjustable speed and constant torque throughout the speed range.

Item Discontinued

Click below to request an agent review potential options.

Weight:

21 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.31.4000

UPC:

691720347263

Technical Details

Application:

General Purpose

Output HP:

1/4

Output KW:

0.19

Output RPM:

1750

Frame NEMA:

56C

Mount NEMA:

C-Face No Base

Input Voltage DC:

90

Full Load Amps:

2.5

Winding:

Permanent Magnet

Enclosure NEMA:

TEFC

Product Information Packet

LEESON NEMA Frame SCR-Rated 90VDC Motor is typically used in applications requiring motor speed adjustment, constant torque throughout the speed range, dynamic braking, and reversing capabilities.

Features:

  • 5/8" Keyed output shaft
  • Durable rolled steel frame
  • Brush holder design provides easy access to brushes
  • Large oversized brushes assure long brush life
  • Capable of dynamic braking
  • PWM or SCR type controller rated
  • High starting torque
  • Permanently lubricated sealed bearings
  • Higher HP and speed achievable using PWM type DC controls
  • UL and CSA listed
  • Meets NEMA MG1 standards
  • Dynamically balanced armatures
