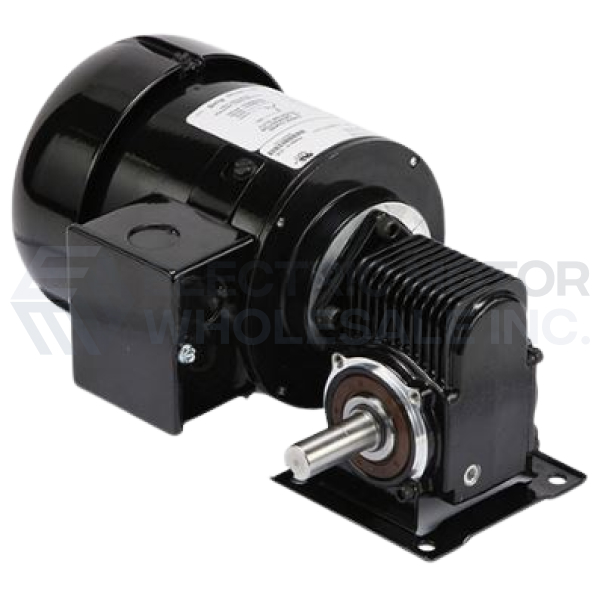

1/4HP BISON 2.8-42RPM TEFC 230VAC 750 SERIES RIGHT ANGLE GEARMOTOR 027-756-4460

APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, commercial broiling ovens, machine tools and many other applications requiring adjustable speed.

FEATURES:

• Gearing: AGMA class 9 heat treated steel
• Geartrain: Engineered to handle up to 200% shockloading
• Housing: Precision machined die cast aluminum
• Lubrication: Lifetime oil bath
• Gearhead Bearings: Needle and thrust ball, or ball bearing

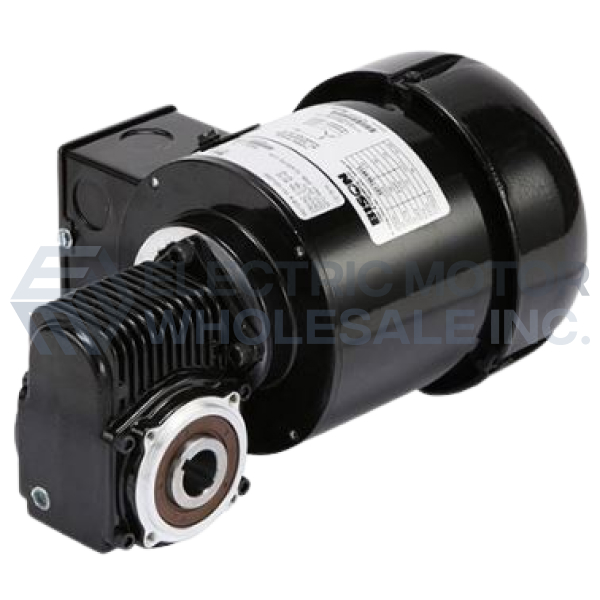

• Shafts: 3/4" Keyed Hollow Bore Output
• Mounting: All position
• Motor Type: 230V, 3 phase, Inverter Duty - 6-90 Hz
• Rotation: Reversible
• Motor Bearings: Double shielded ball bearing support
• Insulation: Class F (155ºC)
• Enclosure: TEFC
• Motor Thermostat: Signal type; closed
• Global safety recognition: UL, CUL
• Insulation system: designed to meet NEMA MG 1 Section 31
• Ambient temperature: 0º to 40ºC
• Continuous duty

Important Guidelines

• Maximum cable length between inverter drive and motor not to exceed 50 feet. Longer cable lengths may require line filters.
• 10:1 Constant Torque Speed Range.
• 1.5:1 Constant Horsepower Range.
• Gearmotors will provide rated torque at low frequency inputs with proper voltage boost.
• Boost must be adjusted to prevent cogging or stall conditions.
• UL and CUL marked for construction.
• Signal type thermostat leads provided.
