1/20HP BISON 36RPM TENV 115/230VAC VWDIR14 SERIES PARALLEL GEARMOTOR 016Q507-0098
1/20HP BISON 36RPM TENV 115/230VAC VWDIR14 SERIES PARALLEL GEARMOTOR 016Q507-0098
Part Number:
016Q5070098Manufacturer:
Bison GearManufacturer Part Number:
016Q507-0098This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.
Regular Price
USD
$
453
82
Shipping Details
Free No Rush Shipping
Weight:
13 lbsDimensions:
8 x 16 x 8 inchesHS Code:
8501.40.2020Technical Details
Specifications
Design: | Parallel Shaft |
Input HP: | 1/20 |
Output KW: | 0.037 |
Output RPM: | 36 |
Gear Ratio: | 46.7:1 |
Torque Lb-In: | 50 |
Overhung Load (lb.): | 50 |
Voltage: | 115/230 |
Full Load Amperage: | 0.62/0.33 |
Frequency (Hz): | 60//50 |
Documentation
Additional Information

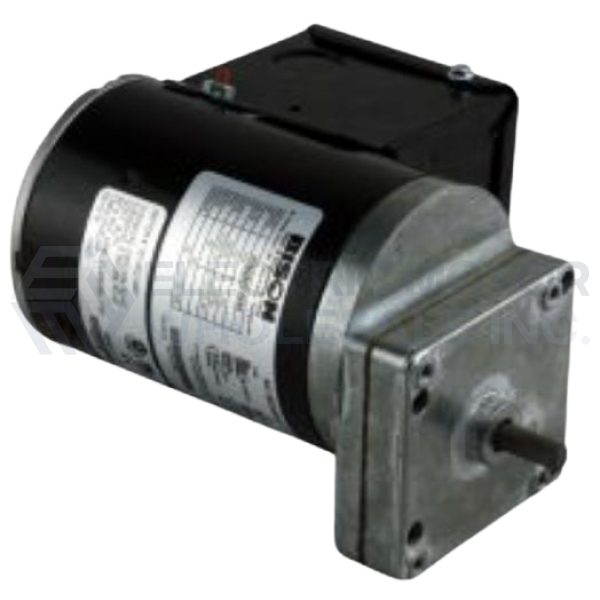

BISON VWDIR14 SERIES Single Phase 115/230VAC Parallel Shaft Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery. Direct replacement for Dayton 1LPU8
FEATURES:
- 0.31" Output shaft with flat
- Gearing: Plastic high speed and steel
- Housing: Precision machined die cast zinc
- Lubrication: Grease
- Bearings: Porous bronze sleeve
- Shafts: Hardened steel
- Mounting: Face (any position)
- Motor Type: Permanent split capacitor
- Rotation: Reversible
- Insulation: Class B minimum
- Finish: Unpainted
- Enclosure: TENV
- Included junction box and capacitor
This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.
