Gear Motors

/

Gearmotors Single Phase

/

BISON GEAR AC Single Phase Gearmotors

/

BISON GEAR 100 SERIES AC 1PH Parallel Gearmotors

/

1/20HP BISON 240RPM TENV 115VAC 100 SERIES PARALLEL GEARMOTOR 016-101-0007

1/20HP BISON 240RPM TENV 115VAC 100 SERIES PARALLEL GEARMOTOR 016-101-0007

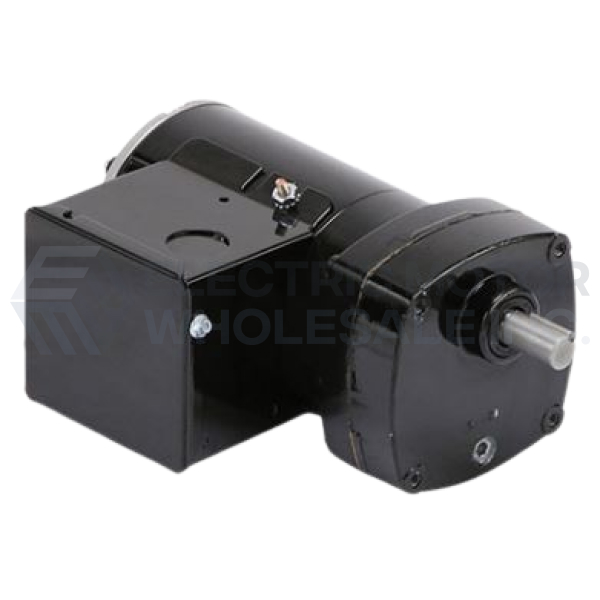

100 SERIES PSC 115VAC.jpg
Picture is for reference only.

Part Number:

0161010007

Manufacturer:

Bison Gear

Manufacturer Part Number:

016-101-0007
016-101-0007 BISON 1/20HP 240RPM 100 SERIES Parallel Shaft 115VAC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $653.46

Regular Price

USD

$

522

77

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

8 lbs

Dimensions:

12 x 16 x 12 inches

HS Code:

8501.40.2020

Technical Details

Design:

Parallel Shaft

Input HP:

1/20

Output KW:

0.037

Output RPM:

240

Gear Ratio:

6.7:1

Torque Lb-In:

13

Overhung Load (lb.):

200

Voltage:

115

Full Load Amperage:

0.6

Frequency (Hz):

60

Product Information Packet

APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, commercial broiling ovens, machine tools and many other applications.

FEATURES:

  • 1/2" Keyed output shaft with flat
  • Additional 0.31" rear output shaft with flat
  • Gearing: 1st-stage helical steel, balance powdered metal or steel
  • Housing: Precision machined die cast aluminum
  • Lubrication: Lifetime oil bath, sealed and gasketed
  • Bearings: Needle output
  • Shafts: Hardened steel
  • Mounting: Face or optional footplate (any angle)
  • Motor Type: Permanent split capacitor
  • Rotation: Reversible
  • Insulation: Class B minimum
  • Finish: Gloss black powder coat
  • Enclosure: TENV
