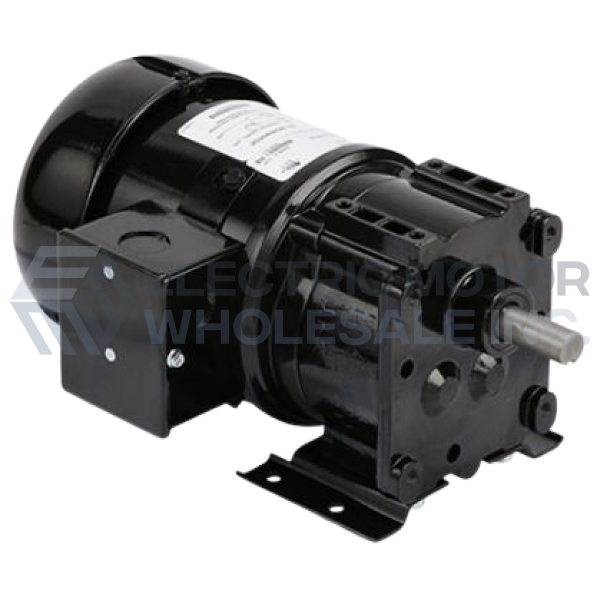

014-242-9019 BISON 1/6HP 90RPM 115VAC 242 SERIES 1PH Gearmotor, Dayton 6K332

Gear Motors

Gearmotors Single Phase

BISON GEAR AC Single Phase Gearmotors

BISON GEAR 242 SERIES AC 1PH Parallel Gearmotors

1/6HP BISON 90RPM TEFC 115VAC 1PH 242 SERIES PARALLEL GEARMOTOR 014-242-9019

Part Number:

0142429019

Manufacturer:

Bison Gear

Manufacturer Part Number:

014-242-9019

014-242-9019 BISON 1/6HP 90RPM 242 SERIES 1PH Parallel Shaft 115VAC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery. Direct replacement for Dayton 6K332

Ordering Notes

This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.

MSRP: $1,031.84

Regular Price

USD

825

QTY

Shipping Details

Free No Rush Shipping

Weight:

16 lbs

Dimensions:

12 x 17 x 12 inches

HS Code:

8501.40.4020

Technical Details

Specifications

Design:	Parallel Shaft
Input HP:	1/6
Output KW:	0.12
Output RPM:	90
Gear Ratio:	19.1:1
Torque Lb-In:	107
Overhung Load (lb.):	175
Voltage:	115
Full Load Amperage:	3.8
Frequency (Hz):	60

Documentation

Product Information Packet

Additional Information

BISON 242 SERIES Single Phase Parallel Shaft 115V Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery. Direct replacement for Dayton 6K332

FEATURES:

5/8" Keyed output shaft
Additional 0.31" rear output shaft
Gearing: Hardened steel, AGMA Class 9, 1st stage helical steel, balance spur metal
Housing: Precision machined die cast aluminum
Lubrication: Lifetime oil bath, sealed and gasketed
Bearings: Needle with thrust ball
Shafts: Hardened steel
Mounting: Face or optional footplate (any angle)
Motor Type: Split phase
Rotation: Reversible
Insulation: Class B minimum
Finish: Gloss black powder coat
Enclosure: TEFC
Included junction box
