1HP BALDOR 1740RPM 56C TENV 3PH EPOXY WASHDOWN MOTOR VWDM3546

1HP BALDOR 1740RPM 56C TENV 3PH EPOXY WASHDOWN MOTOR VWDM3546

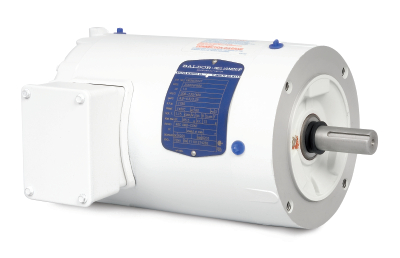

Picture is for reference only.

Part Number:

VWDM3546

Model/Spec Number:

35S603P439G1

Manufacturer:

Baldor Obsolete Motors
VWDM3546 BALDOR 1HP 3PH WASHDOWN EPOXY ELECTRIC MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

35 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501516040

UPC:

781568108789

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

1

Output KW:

0.75

Output RPM:

1740

Frame Size NEMA:

56C

Mount NEMA:

C Face No Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

208-230/460

VWDM3546-InfoPacket

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
