3/4HP BALDOR 1750RPM 56C 3PH TENV WASHDOWN MOTOR VWDM3542

Catalog Number:  VWDM3542
Spec Number:  35S603M515G1
Description:  3/4HP,1750RPM,56C,TENV,3PH,60HZ,WASHDOWN
Ship Weight:  33 lbs.

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • 5/8" Keyed output shaft
  • Stainless steel shaft
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
SPEC. NUMBER: 35S603M515G1
CATALOG NUMBER: VWDM3542
FL AMPS: 2.4/1.2
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 80
ENCLOSURE: TENV
FRAME: 56C
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: M
SPEED [rpm]: 1750
OUTPUT [hp]: .75
PHASE: 3
POWER-FACTOR: 74
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.25
VOLTAGE: 230/460

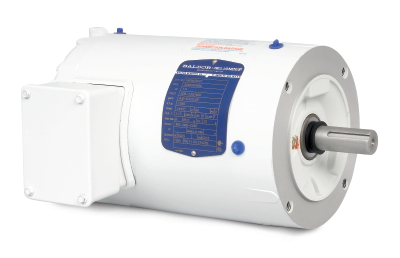

3/4HP BALDOR 1750RPM 56C 3PH TENV WASHDOWN MOTOR VWDM3542
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: VWDM3542
Stock # VWDM3542
Price: $496.32
Compare At: $705.00
