3/4HP BALDOR 1750RPM 80C TEFC 180VDC B14 PERMANENT MAGNET MOTOR VP3436-14

3/4HP BALDOR 1750RPM 80C TEFC 180VDC B14 PERMANENT MAGNET MOTOR VP3436-14

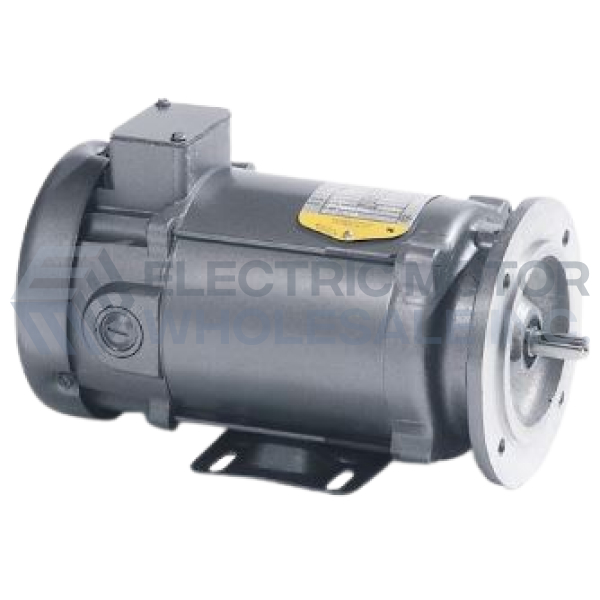

Picture is for reference only.

Part Number:

VP3436-14

Model/Spec Number:

34-6243-3946

Manufacturer:

ABB/Baldor
VP3436-14 BALDOR 3/4HP 180VDC B14 Permanent Magnet Metric Motors include SCR Drive Motors for replacement on machinery requiring metric mounting dimensions.
MSRP: $1,689.00

Regular Price

USD

$

1,213

83

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

40 lbs

Dimensions:

13 x 22 x 15 inches

HS Code:

8501.31.4000

UPC:

781568154809

Technical Details

Application:

General Purpose

Output HP:

3/4

Output KW:

0.56

Output RPM:

1750

Frame IEC:

D80C

Mount NEMA:

C-Face With Base

Mount IEC:

B14

Input Voltage DC:

180

Full Load Amps:

3.7

Winding:

Permanent Magnet

VP3436-14-InfoPacket

BALDOR DC Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox.

APPLICATIONS: include SCR Drive Motors for replacement on machinery requiring metric mounting dimensions.

  • B14 Metric flange with B3 foot mounting
  • Bolt on non-metric base
  • Class F Insulation
  • Tach adaptable except type 15kW
  • 20:1 constant torque speed range
  • Conforms to IEC 60034-1
