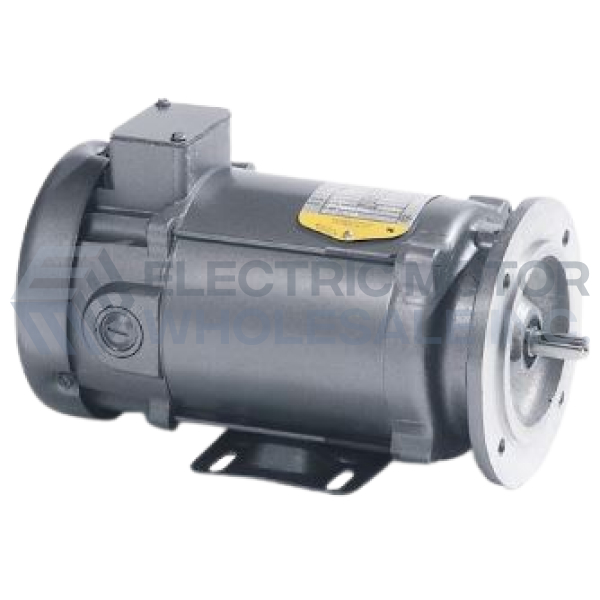

1/2HP BALDOR 1750RPM 71C TEFC 180VDC B14 PERMANENT MAGNET MOTOR VP3426-14

1/2HP BALDOR 1750RPM 71C TEFC 180VDC B14 PERMANENT MAGNET MOTOR VP3426-14


Part Number:

VP3426-14

Model/Spec Number:

34-6242-3950

Manufacturer:

ABB/Baldor
VP3426-14 BALDOR 1/2HP 180VDC B14 Permanent Magnet Metric Motors include SCR Drive Motors for replacement on machinery requiring metric mounting dimensions.
MSRP: $1,442.00

Regular Price

USD

$

1,036

32

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

36 lbs

Dimensions:

12 x 21 x 14 inches

HS Code:

8501.31.4000

UPC:

781568154786

Technical Details

Application:

General Purpose

Output HP:

1/2

Output KW:

0.37

Output RPM:

1750

Frame IEC:

D71C

Mount NEMA:

C-Face With Base

Mount IEC:

B14

Input Voltage DC:

180

Full Load Amps:

2.5

Winding:

Permanent Magnet

VP3426-14-InfoPacket

BALDOR DC Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox.

APPLICATIONS: include SCR Drive Motors for replacement on machinery requiring metric mounting dimensions.

  • B14 Metric flange with B3 foot mounting
  • Bolt on non-metric base
  • Class F Insulation
  • Tach adaptable except type 15kW
  • 20:1 constant torque speed range
  • Conforms to IEC 60034-1
