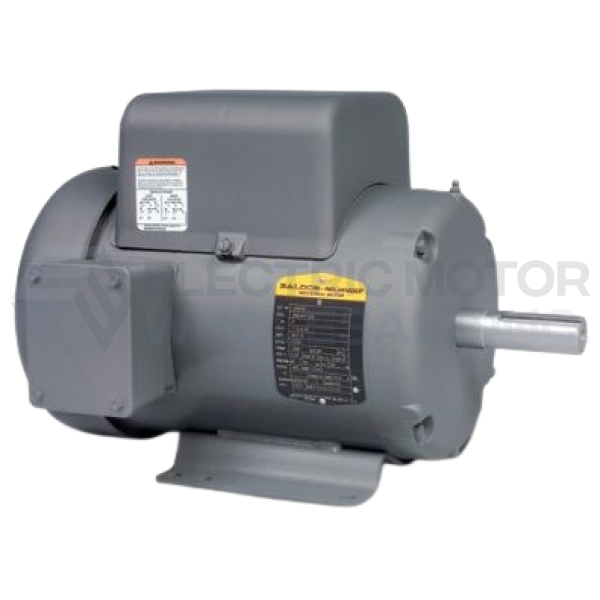

1.5HP BALDOR 1725RPM 56/56H TEFC 1PH MOTOR L3514M

Catalog Number:  L3514M
Description:  1.5HP,1725RPM,56/56H,TEFC,1PH,60HZ
Ship Weight:  51 lbs.

APPLICATIONS: General purpose including compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools, etc.

FEATURES:

  • Heavy gauge steel frames
  • Ball bearings
  • Base is seam welded to frame
  • "Snap Action" starting switch for reliability
SPEC. NUMBER: 35H611W114
CATALOG NUMBER: L3514M
FL AMPS: 16/7.9-8
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: L
DOE-CODE: --
FL EFFICIENCY: 75.5
ENCLOSURE: TEFC
FRAME: 56/56H
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: J
SPEED [rpm]: 1725
OUTPUT [hp]: 1.5
PHASE: 1
POWER-FACTOR: 80
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
VOLTAGE: 115/208-230
1.5HP BALDOR 1725RPM 56/56H TEFC 1PH MOTOR L3514M
Click Image to Enlarge
Manufacturer Part Number: L3514M
Stock # L3514M
Price: $415.00
Compare At: $733.00
