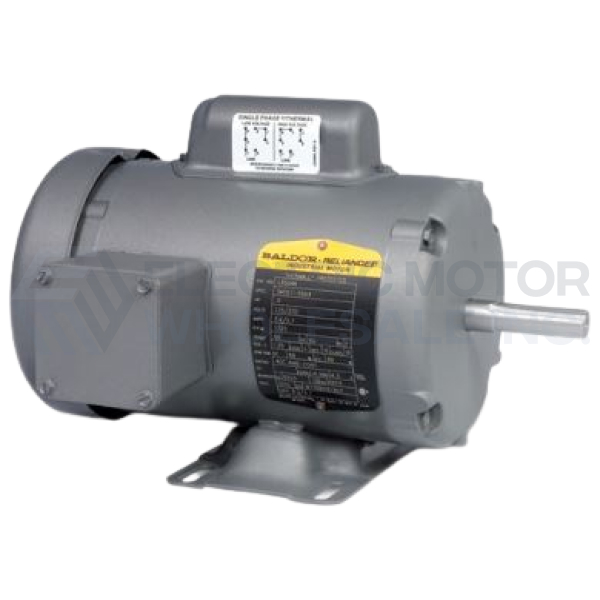

1HP BALDOR 1725RPM 143T TEFC 1PH MOTOR L3510T

Catalog Number:  L3510T
Description:  1HP,1725RPM,143T,TEFC,1PH,60HZ
Ship Weight:  39 lbs.

APPLICATIONS: General purpose including compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools, etc.

FEATURES:

  • Heavy gauge steel frames
  • Ball bearings
  • Base is seam welded to frame
  • "Snap Action" starting switch for reliability
SPEC. NUMBER: 35CC001X945
CATALOG NUMBER: L3510T
FL AMPS: 12.8/6.4
208V AMPS: 7
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: L
DOE-CODE: --
FL EFFICIENCY: 68
ENCLOSURE: TEFC
FRAME: 143T
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: K
SPEED [rpm]: 1725
OUTPUT [hp]: 1
PHASE: 1
POWER-FACTOR: 74
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 115/230
