GHL35010 BALDOR 1/2HP GEARMOTOR 34C63-5422K3

1/2HP BALDOR 172RPM TEFC 1PH GEARMOTOR GHL35010

Part Number:

GHL35010

Model/Spec Number:

34C63-5422K3

Manufacturer:

Baldor Obsolete Motors

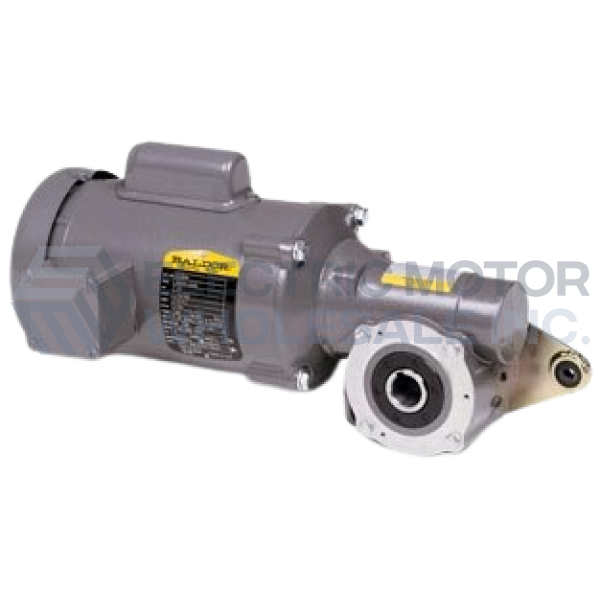

GHL35010 BALDOR 1/2HP Hollow Shaft Single Phase Gearmotor. General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Weight:

45 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501514020

UPC:

781568393277

Technical Details

Specifications

Design:	Right Angle Hollow Bore
Input HP:	1/2
Output KW:	0.37
Output RPM:	172
Gear Ratio:	10:1
Torque Lb-In:	150
Voltage:	115/230
Frequency (Hz):	60
Application:	General Purpose
Frame Size:	H

Documentation

Product Information Packet

Additional Information

APPLICATIONS: General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

FEATURES:

Hollow bore output shaft for direct connection to driven load
Permanently lubricated with synthetic H1 food grade oil
Supplied with torque arm and shaft cover
Permanently lubricated with synthetic Mobil SHC634 oil
Suitable for horizontal or vertical motor above gearhead mounting
Reversible
Chill cast bronze gearing
