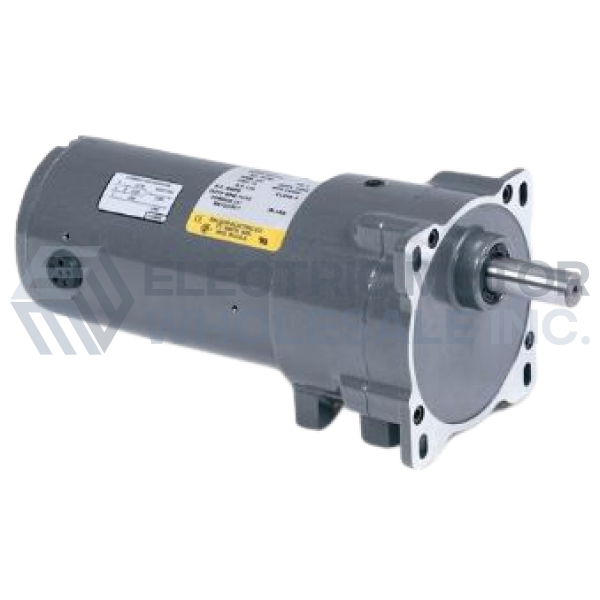

1/9HP BALDOR 330RPM TEFC 115VAC 1PH PARALLEL SHAFT GEARMOTOR GCP25062

1/9HP BALDOR 330RPM TEFC 115VAC 1PH PARALLEL SHAFT GEARMOTOR GCP25062


Part Number:

GCP25062

Model/Spec Number:

25E649W026G1

Manufacturer:

Baldor Obsolete Motors
GCP25062 BALDOR 1/9HP 115VAC Single Phase Parallel Shaft Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Weight:

14 lbs

Dimensions:

16 x 20 x 16 inches

HS Code:

8501.40.4020

UPC:

781568179734

Technical Details

Design:

Parallel Shaft

Input HP:

1/9

Output RPM:

330

Gear Ratio:

5:1

Torque Lb-In:

19

Overhung Load (lb.):

65

Voltage:

115

Full Load Amperage:

2.5

Frequency (Hz):

60/50

Application:

General Purpose

Product Information Packet

APPLICATIONS: Conveyors, packaging machines, machine tools and laboratory equipment requiring constant speed.

FEATURES:

  • Needle and ball bearing construction for smooth torque transmission
  • Induction hardened helical and spur gearing
  • Permanently lubricated with synthetic Mobil SHC634
  • Output shaft is 1/2" diameter
  • Reversible
  • Powered-coated enamel finish
  • 12" leads
  • Conduit box kit BKP2400 sold separately

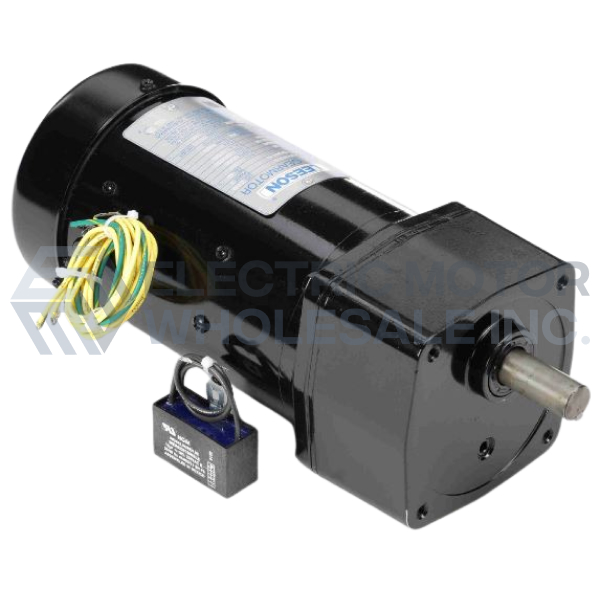

Image for 1/6HP LEESON 340RPM TEFC 115/230VAC 1PH PE350 PARALLEL GEARMOTOR 096011.00
