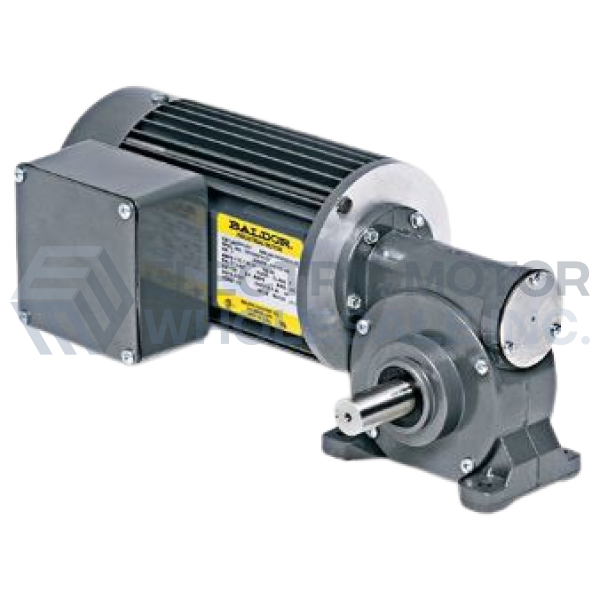

1/4HP BALDOR 151RPM TEFC 115VAC 1PH RIGHT ANGLE GEARMOTOR GC3325

1/4HP BALDOR 151RPM TEFC 115VAC 1PH RIGHT ANGLE GEARMOTOR GC3325


Part Number:

GC3325

Model/Spec Number:

33E324W134G1K2

Manufacturer:

Baldor Obsolete Motors
GC3325 BALDOR 1/4HP 115VAC Single Phase Right Angle Gearmotor. General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Weight:

26 lbs

Dimensions:

8 x 16 x 8 inches

HS Code:

8501.40.4020

UPC:

781568123775

Technical Details

Design:

Right Angle Solid Shaft

Input HP:

1/4

Output RPM:

151

Gear Ratio:

11:1

Torque Lb-In:

70

Voltage:

115

Full Load Amperage:

4.2

Frequency (Hz):

60

Application:

General Purpose

Frame Size:

JK

Product Information Packet

APPLICATIONS: General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

FEATURES:

  • Ball bearing on output for smooth torque transmission
  • High strength bronze gearing
  • Hardened and ground worm
  • Permanently lubricated with synthetic Mobil SHC634 oil
  • Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
  • Single output shaft is 3/4" diameter
  • Reversible
  • 12" leads
  • Conduit box kit BKP2400 sold separately

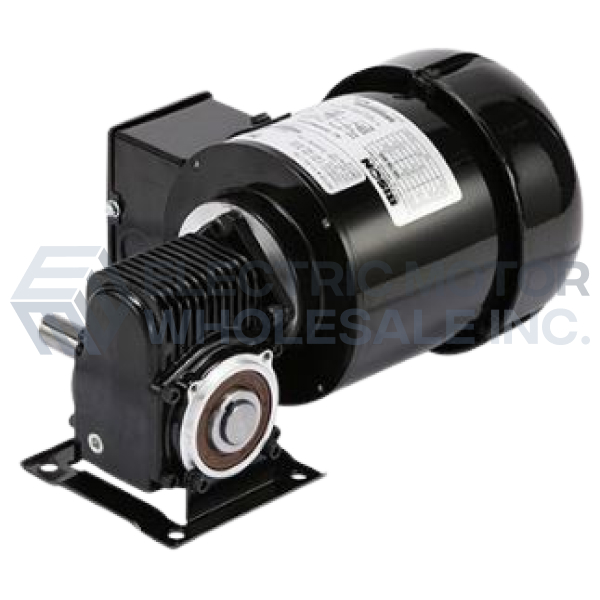

Image for 1/4HP BISON 124RPM TEFC 115/230VAC 750 SERIES RIGHT ANGLE GEARMOTOR 026-756-4613
