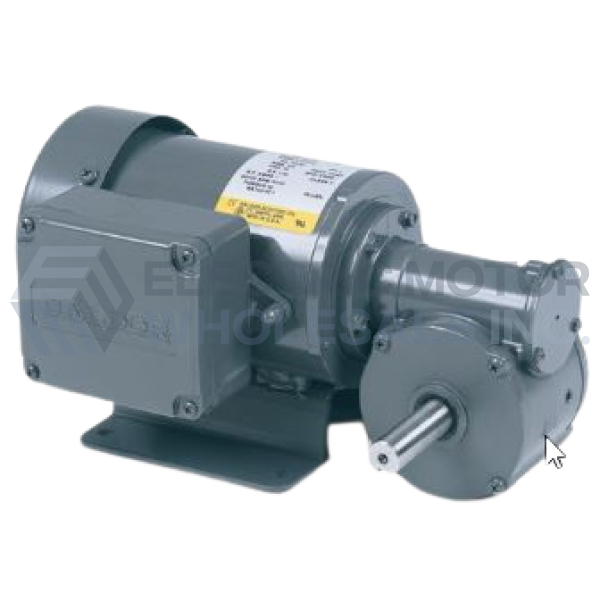

1/6HP BALDOR 41RPM TEFC 115VAC 1PH RIGHT ANGLE GEARMOTOR GC3320

1/6HP BALDOR 41RPM TEFC 115VAC 1PH RIGHT ANGLE GEARMOTOR GC3320


Part Number:

GC3320

Model/Spec Number:

25E265W226G4

Manufacturer:

Baldor Obsolete Motors
GC3320 BALDOR 1/6HP 115VAC Single Phase Right Angle Gearmotor. General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Weight:

15 lbs

Dimensions:

8 x 16 x 8 inches

HS Code:

8501404020

UPC:

781568297476

Technical Details

Design:

Right Angle Solid Shaft

Input HP:

1/6

Output RPM:

41

Gear Ratio:

40:1

Torque Lb-In:

130

Voltage:

115

Full Load Amperage:

1.72

Frequency (Hz):

60/50

Application:

General Purpose

Frame Size:

K

Product Information Packet

APPLICATIONS: General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

FEATURES:

  • Ball bearing on output for smooth torque transmission
  • High strength bronze gearing
  • Hardened and ground worm
  • Permanently lubricated with synthetic Mobil SHC634 oil
  • Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
  • Single output shaft is 5/8" diameter
  • Reversible
  • 12" leads
  • Conduit box kit BKP2400 sold separately

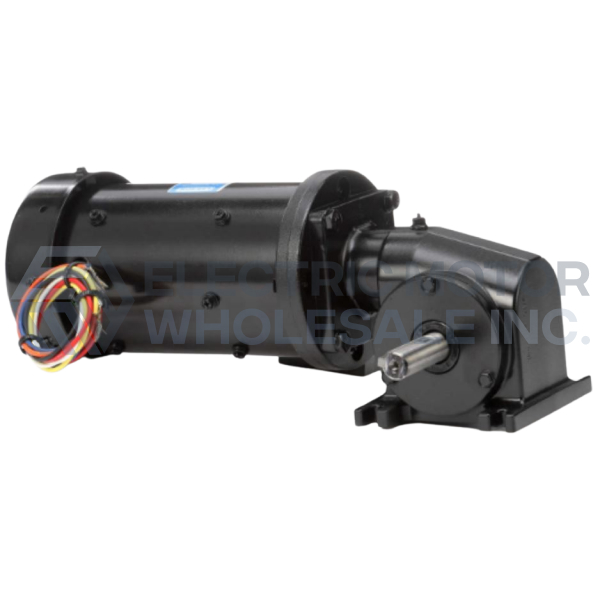

Image for 1/6HP LEESON 43RPM TEFC 115/230VAC RIGHT ANGLE GEARMOTOR M1145038.00
