1/12HP BALDOR 148RPM TENV 115VAC 1PH GEARMOTOR GC24316

1/12HP BALDOR 148RPM TENV 115VAC 1PH GEARMOTOR GC24316


Part Number:

GC24316

Model/Spec Number:

24E198W009G1

Manufacturer:

Baldor Obsolete Motors

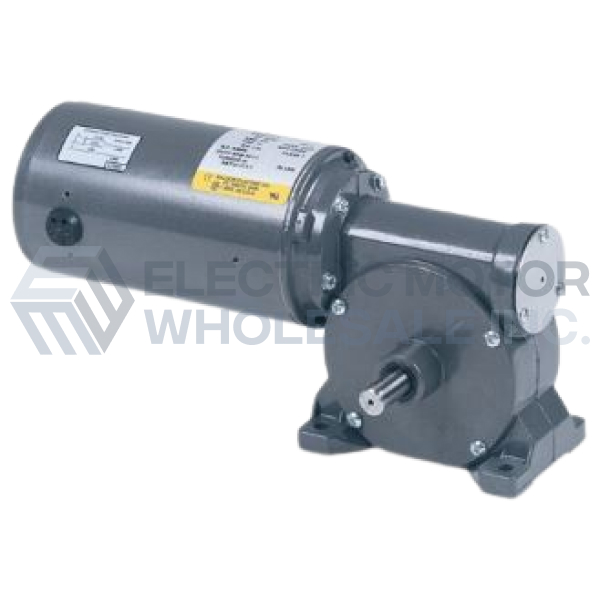

GC24316 BALDOR 1/12HP 115VAC Single Phase Right Angle Gearmotor. General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Weight:

13 lbs

Dimensions:

8 x 16 x 8 inches

HS Code:

8501.40.2020

UPC:

781568202081

Technical Details

Design:

Right Angle Solid Shaft

Input HP:

1/12

Output RPM:

148

Gear Ratio:

11:1

Torque Lb-In:

25

Voltage:

115

Full Load Amperage:

0.93

Frequency (Hz):

60/50

Application:

General Purpose

Mounting Footprint:

3.50"-3.99"

Product Information Packet

APPLICATIONS: General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

FEATURES:

  • Permaglide sleeve bearing on output for smooth torque transmission
  • Permanently lubricated for life with Mobil SHC634 oil
  • Internal oil expansion bladder allows for all position mounting without relocating a breather vent *
  • Double output shaft is 1/2" diameter
  • Reversible
  • Powered-coated enamel finish
  • 12" leads
  • Conduit box kit BKP2400 sold separately

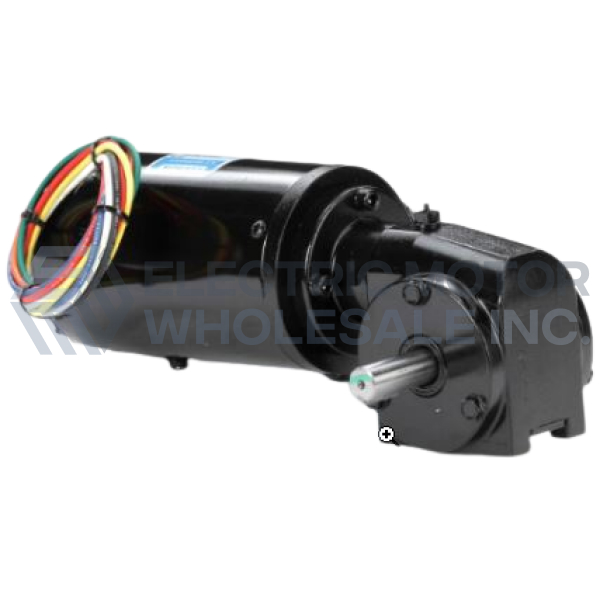

Image for 1/15HP LEESON 85RPM TENV 115/230VAC RIGHT ANGLE GEARMOTOR M1125083.00
