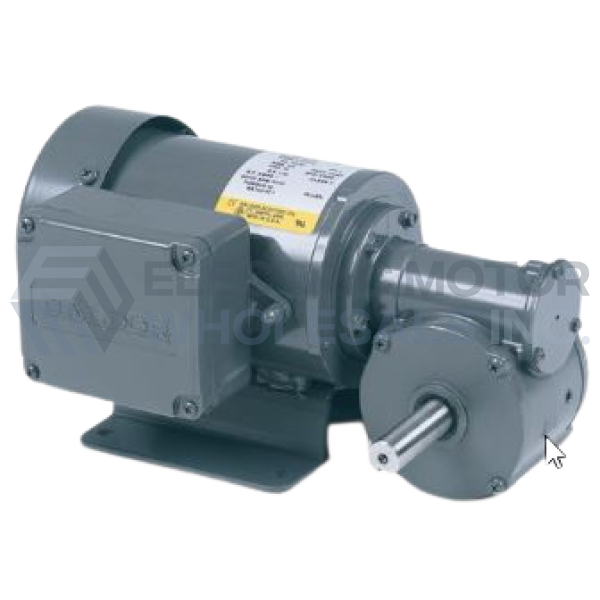

1/16HP BALDOR 42RPM TEFC 115VAC 1PH GEARMOTOR GC24308

1/16HP BALDOR 42RPM TEFC 115VAC 1PH GEARMOTOR GC24308


Part Number:

GC24308

Model/Spec Number:

24E090W107G3

Manufacturer:

Baldor Obsolete Motors
GC24308 BALDOR 1/16HP 115VAC Single Phase Right Angle Gearmotor. General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Weight:

11 lbs

Dimensions:

8 x 16 x 8 inches

HS Code:

8501.40.2020

UPC:

781568297360

Technical Details

Design:

Right Angle Solid Shaft

Input HP:

1/15

Output RPM:

42

Gear Ratio:

40:1

Torque Lb-In:

49

Voltage:

115

Full Load Amperage:

0.79

Frequency (Hz):

60/50

Application:

General Purpose

Frame Size:

K

Product Information Packet

APPLICATIONS: General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

FEATURES:

  • Ball bearing on output for smooth torque transmission
  • High strength bronze gearing
  • Hardened and ground worm
  • Permanently lubricated with synthetic Mobil SHC634 oil
  • Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
  • Single output shaft is 5/8" diameter
  • Reversible
  • 12" leads
  • Conduit box kit BKP2400 sold separately
