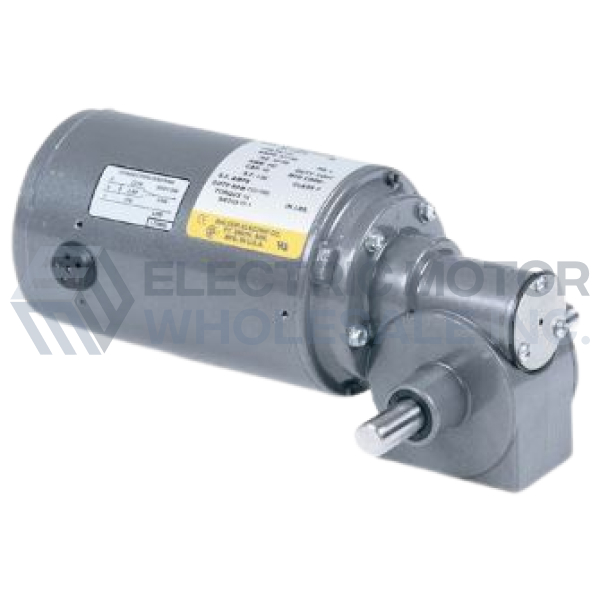

1/20HP BALDOR 158RPM TENV 115VAC 1PH GEARMOTOR GC24302
1/20HP BALDOR 158RPM TENV 115VAC 1PH GEARMOTOR GC24302
Part Number:
GC24302Model/Spec Number:
24E131W202G1Manufacturer:
Baldor Obsolete MotorsClick below to request an agent review potential options.
Shipping Details
Weight:
20 lbsDimensions:
8 x 16 x 8 inchesHS Code:
8501.40.2020UPC:
781568200834Technical Details
Specifications
Design: | Right Angle Solid Shaft |
Input HP: | 1/20 |
Output RPM: | 158 |
Gear Ratio: | 10:1 |
Torque Lb-In: | 18 |
Voltage: | 115 |
Full Load Amperage: | 0.69 |
Frequency (Hz): | 60/50 |
Application: | General Purpose |
Mounting Footprint: | 2.0" X 1.19" |
Documentation
Additional Information
APPLICATIONS: General purpose fixed speed including conveyors, material handling equipment and packaging machinery.
FEATURES:
- Permaglide sleeve bearing on output for smooth torque transmission
- Permanently lubricated for life with Mobil SHC634 oil
- Internal oil expansion bladder allows for all position mounting without relocating a breather vent *
- Double output shaft is 1/2" diameter
- Reversible
- Powered-coated enamel finish
- 12" leads
- Conduit box kit BKP2400 sold separately
