1/2HP BALDOR 1425RPM 56C XPFC MOTOR CL5004A-50

Catalog Number:  CL5004A-50
Description:  1/2HP,1425RPM,56C,XPFC,1PH,50HZ,EXPLOSION
Ship Weight:  45 lbs.

APPLICATIONS: Designed for a wide variety of applications including use with pumps, blowers, and valves.

FEATURES:

  • THESE EXPLOSION PROOF MOTORS ARE NOT SUITABLE FOR USE WITH ADJUSTABLE SPEED DRIVES. INVERTER DUTY EXPLOSION PROOF MOTORS MUST BE USED.
  • Corrosion resistant epoxy finish
  • Positively locked drive end bearing
  • U.L. approved cast conduit box-standard
  • 1.00 Service Factor
  • U.L. and CSA approved for Class I, Group D, Class II, Group F & G, T3C
  • Rated for ±15% voltage variation

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty.

SPEC. NUMBER: 34-5328W776
CATALOG NUMBER: CL5004A-50
FL AMPS: 7.2/3.6
208V AMPS: --
DESIGN CODE: N
DOE-CODE: --
FL EFFICIENCY: 62
FRAME: 56C
HERTZ: 50
INSULATION-CLASS: B
KVA-CODE: J
SPEED [rpm]: 1425
NAMEPLATE-SERIAL-NUMBER: --
OUTPUT [hp]: .5
PHASE: 1
POWER-FACTOR: 76
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
TEMP. CODE: T3C
VOLTAGE: 110/220

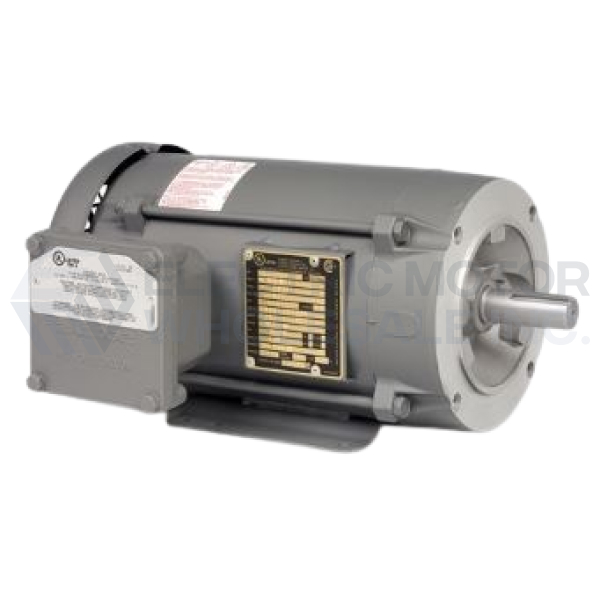

1/2HP BALDOR 1425RPM 56C XPFC MOTOR CL5004A-50
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: CL5004A-50
Stock # CL5004A-50
Price: $530.00
Compare At: $912.00
