1HP BALDOR 1155RPM 56C 3PH TEFC WASHDOWN MOTOR CEWDM3556

Catalog Number:  CEWDM3556
Description:  1HP,1155RPM,56C,TEFC,3PH,60HZ,WASHDOWN
Ship Weight:  43 lbs.

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
SPEC. NUMBER: 35S587M497G1
CATALOG NUMBER: CEWDM3556
FL AMPS: 3.6/1.8
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 82.5
ENCLOSURE: TEFC
FRAME: 56C
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: K
SPEED [rpm]: 1155
OUTPUT [hp]: 1
PHASE: 3
POWER-FACTOR: 64
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

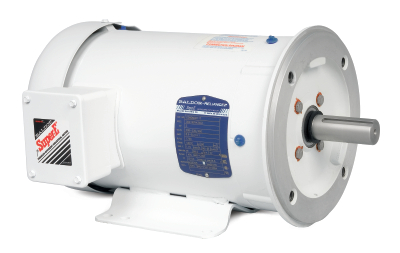

1HP BALDOR 1155RPM 56C 3PH TEFC WASHDOWN MOTOR CEWDM3556
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: CEWDM3556
Stock # CEWDM3556
Price: $660.00
Compare At: $1,172.00
