5HP BALDOR 1750RPM 256UC TEFC 180V SHUNT WOUND MOTOR CD9105

5HP BALDOR 1750RPM 256UC TEFC 180V SHUNT WOUND MOTOR CD9105

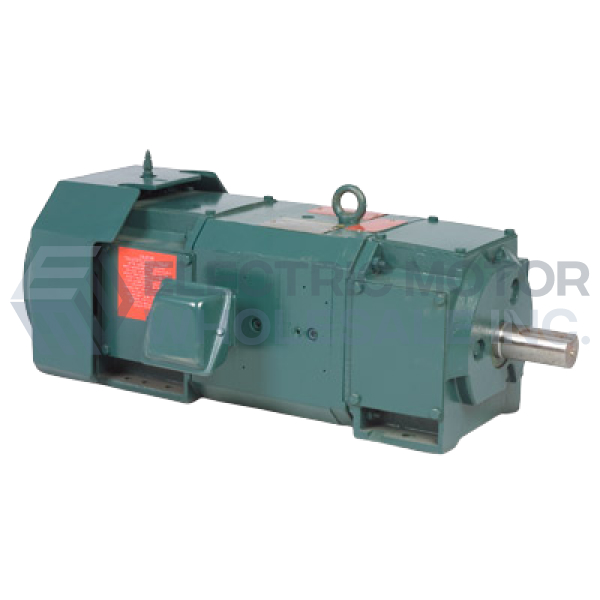

Picture is for reference only.

Part Number:

CD9105

Model/Spec Number:

30D042W206

Manufacturer:

Baldor Obsolete Motors
CD9105 BALDOR 5HP Shunt Wound Motor designed for Conveyors, printing, textile equipment, machine tools and other equipment requiring variable speeds.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

305 lbs

Dimensions:

26 x 32 x 24 inches

UPC:

781568124871

Technical Details

Application:

General Purpose

Output HP:

5

Output RPM:

1750

Mount NEMA:

C-Face With Base

Input Voltage DC:

180

Full Load Amps:

23

Field Voltage:

100/200

Winding:

Shunt Wound

Enclosure NEMA:

TEFC

Thermal Protection:

NONE

Product Information Packet

APPLICATIONS: Conveyors, printing, textile equipment, machine tools and other equipment requiring variable speeds with constant torque.

FEATURES:

  • TEFC enclosure
  • Shunt wound
  • Designed for use with NEMA TYPE K SCR control 20:1 constant torque speed range
  • NEMA C-face and removable base
  • NEMA 182 and larger have a thermostat (normally closed contracts) on the field winding
  • No dual mounting base holes on 35D, 75D or 91D type
