1.5HP LEESON 3450RPM 56C DP 1PH ECOSAVER MOTOR E116770.00

1.5HP LEESON 3450RPM 56C DP 1PH ECOSAVER MOTOR E116770.00

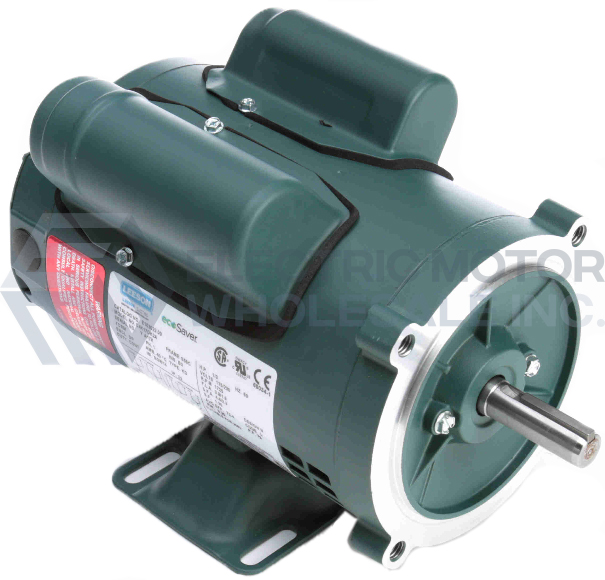

1PH ECOSAVER CFACE WBASE.jpg
Picture is for reference only.

Part Number:

E116770.00

Model/Spec Number:

C6K34DK24

Manufacturer:

Leeson Obsolete
E116770.00 LEESON 1.5HP Single Phase ECOSAVER Motor satisfies the mandated efficiencies of NEMA Premium and carries a three year warranty. For use where water and dust exposure is moderate.

Item Discontinued

Click below to request an agent review potential options.

Weight:

38 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.6040

UPC:

691720041512

Technical Details

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

3450

Frame NEMA:

56C

Mount NEMA:

C-Face With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

115/230

Frequency (Hz):

60

Product Information Packet
