Electric Motors

/

Discontinued Electric Motors

/

Leeson Discontinued Motors

/

1/4HP LEESON 3450RPM 48 ODP 1PH ECOSAVER MOTOR E101434.00

1/4HP LEESON 3450RPM 48 ODP 1PH ECOSAVER MOTOR E101434.00

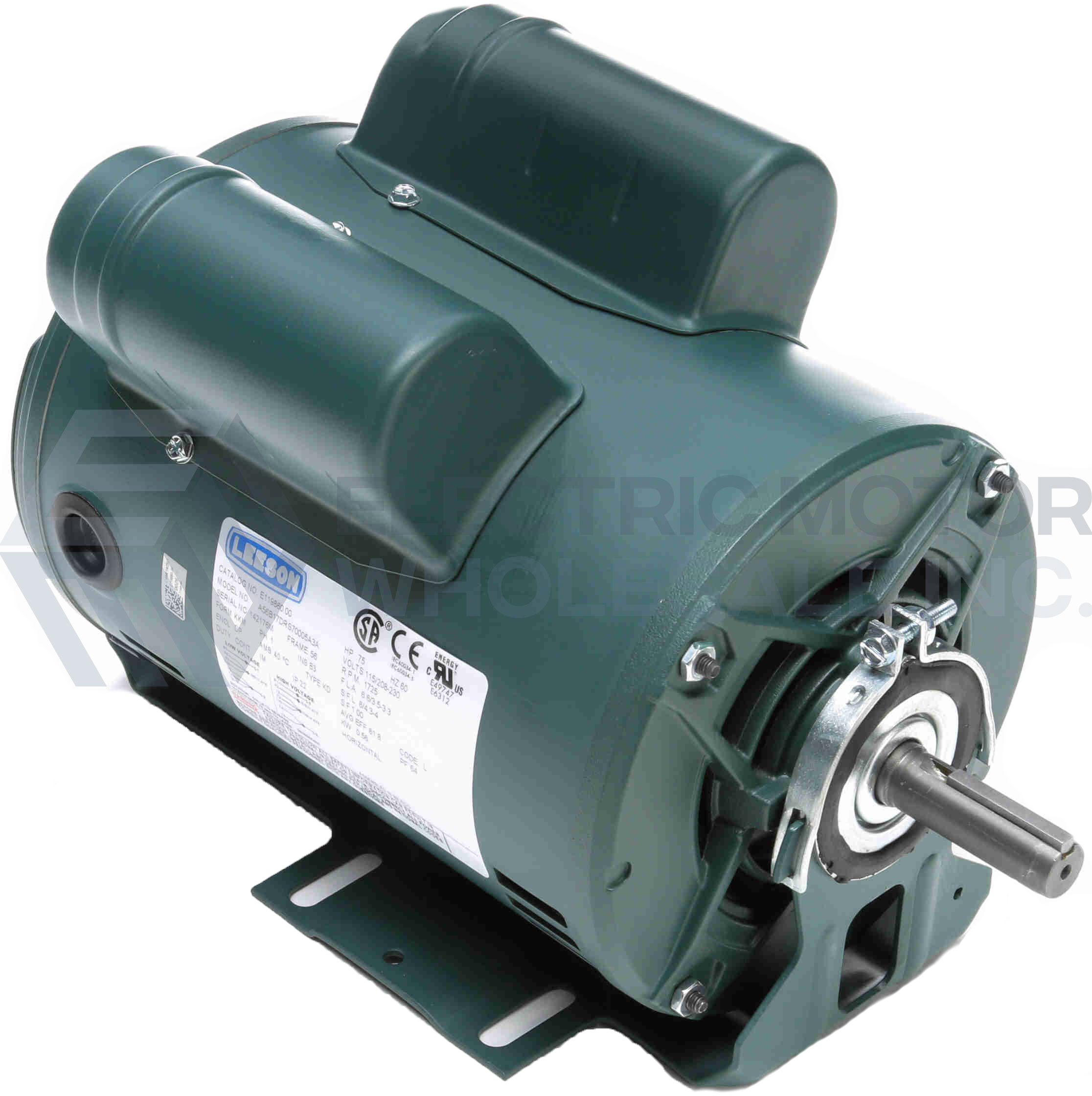

ECOSAVER 1PH CSCR.jpg
Picture is for reference only.

Part Number:

E101434.00

Model/Spec Number:

E101434.00

Manufacturer:

Leeson Obsolete
E101434.00 LEESON 1/4HP Single Phase Resilient Base ECOSAVER Motor for use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans, and belted applications.

Item Discontinued

Click below to request an agent review potential options.

Weight:

21 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.4040

UPC:

691720990414

Technical Details

Application:

HVAC

Output HP:

1/4

Output KW:

0.19

Output RPM:

3450

Frame NEMA:

48

Mount NEMA:

Resilient Base

Enclosure NEMA:

ODP

Enclosure IEC:

IP22

Voltage:

115/230

Frequency (Hz):

60

Product Information Packet
