2HP LEESON 3490RPM 145JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR 122189.00

2HP LEESON 3490RPM 145JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR 122189.00

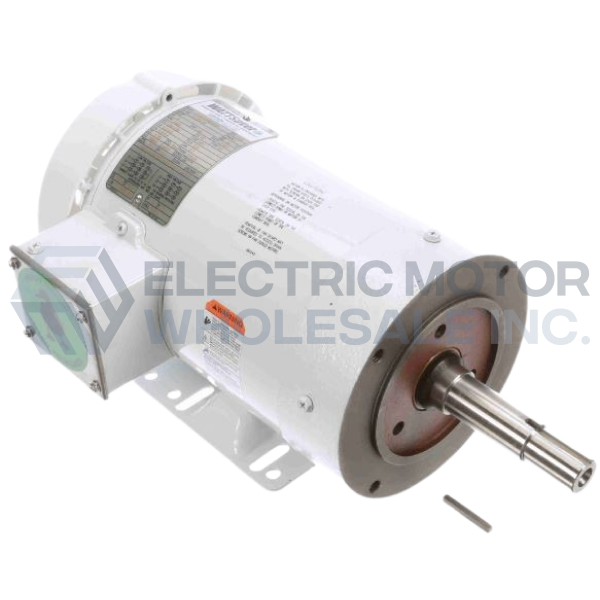

Picture is for reference only.

Part Number:

122189.00

Model/Spec Number:

C145T34WK38

Manufacturer:

Leeson Obsolete
122189.00 LEESON 2HP Three Phase White Duck Epoxy Washguard JM Pump Motor is designed for demanding pump applications requiring a JM shaft in wet, humid areas. Designed to meet the industrial washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants, and the beverage and brewing industries.

Item Discontinued

Click below to request an agent review potential options.

Weight:

52 lbs

Dimensions:

13 x 22 x 13 inches

HS Code:

8501.52.4000

UPC:

691720052051

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

2

Output KW:

1.5

Output RPM:

3490

Frame Size NEMA:

145JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

208-230/460
