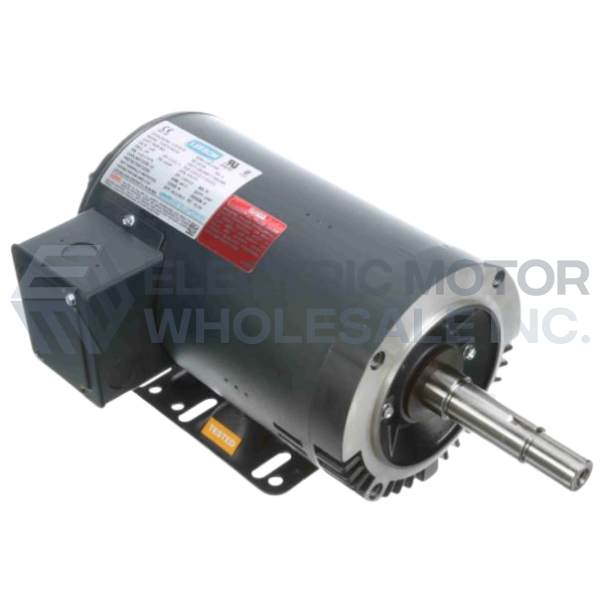

2HP LEESON 3510RPM 145JM DP 3PH PUMP MOTOR 122078.00

2HP LEESON 3510RPM 145JM DP 3PH PUMP MOTOR 122078.00

Picture is for reference only.

Part Number:

122078.00

Model/Spec Number:

C143T34DK5

Manufacturer:

Leeson Obsolete
122078.00 LEESON 2HP Three Phase Premium JM Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions.

Item Discontinued

Click below to request an agent review potential options.

Weight:

39 lbs

Dimensions:

14 x 23 x 15 inches

HS Code:

8501.52.4000

UPC:

691720048023

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

2//1.5

Output KW:

1.5//1.1

Output RPM:

3510//2930

Frame Size NEMA:

145JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

230/460//190/380

Product Information Packet
