2HP LEESON 3600RPM 145T TEFC 115/208-230V 1PH MOTOR 120395.00

Catalog Number:  120395.00 - FREE Ground Shipping in USA
Model Number: P145C34FB5G
Description:  2HP,3450RPM,145T,TEFC,115/208-230V,1PH,60HZ
Ship Weight:  47 lbs.

LEESON Single Phase General Purpose Motor for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Designed for use with woodworking equipment such as table saws, planers, etc.


  • Made in the USA
  • 7/8" Keyed output shaft
  • Durable rolled steel frame with rigid base
  • Fully gasketed to prevent dust entry
  • Continuous Duty
  • Meets or exceeds NEMA service factors
  • Manual Overload Protection
  • Pressure washer duty
  • Double-shielded ball bearings
  • Capacitor Start
  • UL Recognized Component Listing and CSA approval
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 20 F.L. Amps 11.4-10 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 3600 Hertz 60
KW 1.49 Model Number P145C34FB5G
Frame 145T Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code J
Insul Class F Protection MANUAL Therm.Prot. BRJ42DA
Eff 100% 73 Eff 75%   PF 87
UL NONE CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 47 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW

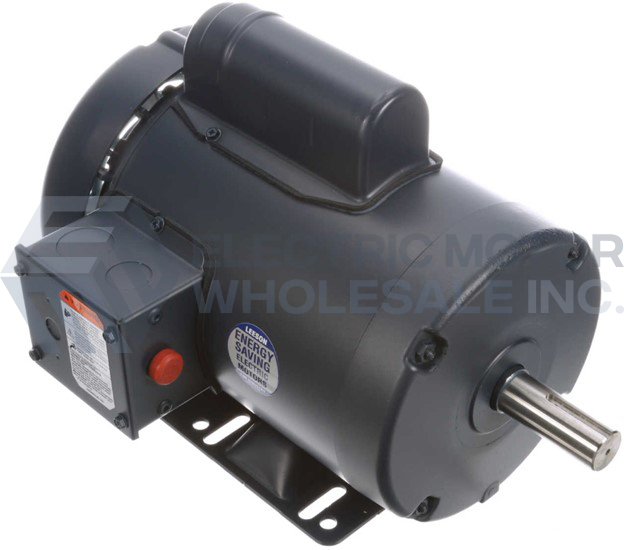

2HP LEESON 3600RPM 145T TEFC 115/208-230V 1PH MOTOR 120395.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 120395.00
Stock # 120395
Price: $468.00
Compare At: $1,114.00
