1.5HP LEESON 1800RPM 145T TEFC 115/208-230V 1PH MOTOR 120009.00

Catalog Number:  120009.00 - FREE Ground Shipping in USA
Model Number:  M145K17FB2J
Description:  1.5HP,1740RPM,145T,TEFC,115/208-230V,1PH,60HZ
Ship Weight:  45 lbs.

LEESON Single Phase General Purpose Motor for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.


  • Made in USA
  • Durable rolled steel frame
  • 7/8" Keyed output shaft
  • Manual Overload Protection
  • Pressure washer duty
  • Double-shielded ball bearings
  • Continuous Duty
  • Capacitor Start/Capacitor Run
  • Combination 56 H base has mounting holes for NEMA 56, and has a standard NEMA 145T frame shaft of 7/8”” Dia.
  • UL Recognized Component Listing and CSA approval.
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 17.2 F.L. Amps 8.8-8.6 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
KW 1.12 Model Number M145K17FB2J
Frame 145 Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code J
Insul Class B Protection MANUAL Therm.Prot. CEJ38CA
Eff 100% 79 Eff 75%   PF 73
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 45 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW

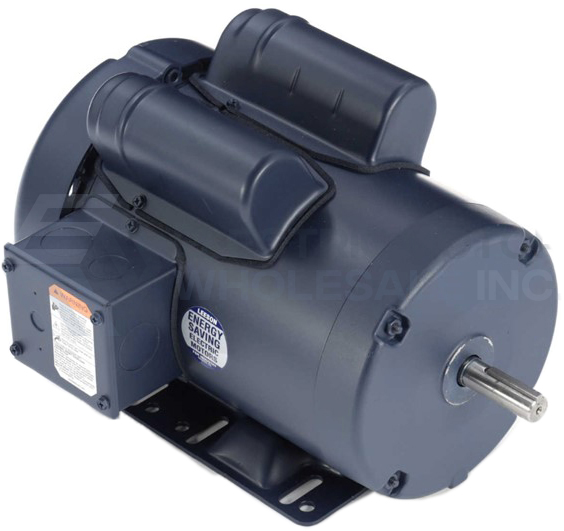

1.5HP LEESON 1800RPM 145T TEFC 115/208-230V 1PH MOTOR 120009.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 120009.00
Stock # 120009
Price: $413.00
Compare At: $976.00
