Electric Motors

/

Discontinued Electric Motors

/

Leeson Discontinued Motors

/

1/4HP LEESON 1625RPM 48Y TENV 1PH PEDESTAL FAN MOTOR MOTOR 103712.00

1/4HP LEESON 1625RPM 48Y TENV 1PH PEDESTAL FAN MOTOR MOTOR 103712.00

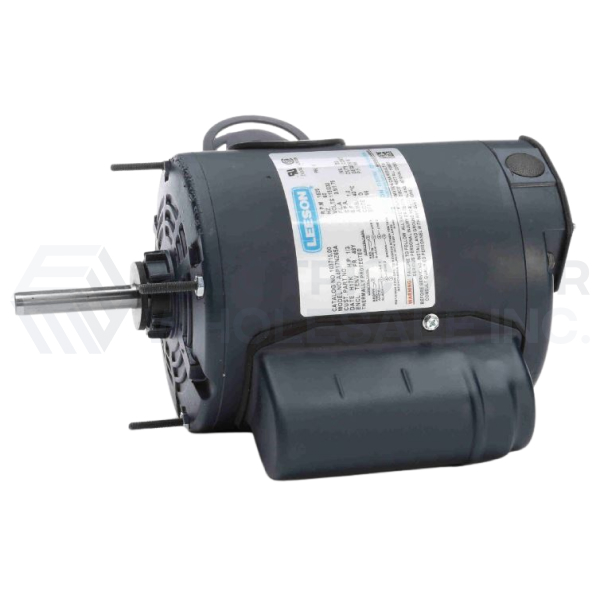

48Y Pedestal Motor.jpg
Picture is for reference only.

Part Number:

103712.00

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

A4P17NZ118A
103712.00 LEESON 1/4HP Single Phase Pedestal Fan Motor is designed for use where the fan is mounted directly to the motor shaft and as a drop in replacement for most belted-fan motors. Heavy gauge steel yoke mount is welded to the motor frame. Extremely quiet running and consumes half the power compared to most standard fan motors.

Item Discontinued

Click below to request an agent review potential options.

Free No Rush Shipping

Weight:

25 lbs

Dimensions:

10 x 15 x 15 inches

HS Code:

8501.40.4040

UPC:

691720021675

Technical Details

Application:

Pedestal Fan

Output HP:

1/4

Output KW:

0.19

Output RPM:

1625

Frame NEMA:

48Y

Mount NEMA:

Yoke Mount

Enclosure NEMA:

TENV

Enclosure IEC:

IP43

Voltage:

115/230

Frequency (Hz):

60
