1.5HP BALDOR 1755RPM 56C TENV 3PH EPOXY WASHDOWN SUPER-E MOTOR VEWDM3554

1.5HP BALDOR 1755RPM 56C TENV 3PH EPOXY WASHDOWN SUPER-E MOTOR VEWDM3554

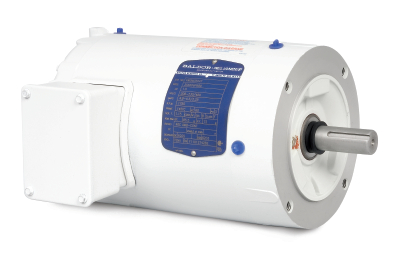

Picture is for reference only.

Part Number:

VEWDM3554

Model/Spec Number:

35S603G178G1

Manufacturer:

ABB/Baldor
VEWDM3554 BALDOR 1.5HP 3PH SUPER-E EPOXY WASHDOWN MOTOR is designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.
MSRP: $1,828.00

Regular Price

USD

$

1,313

72

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

48 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.52.4000

UPC:

781568478370

Technical Details

Brand:

Baldor

Application:

Washdown Epoxy

Output HP:

1.5

Output KW:

1.1

Output RPM:

1755

Frame Size NEMA:

56C

Mount NEMA:

C Face No Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

230/460

VEWDM3554-InfoPacket.pdf

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.

FEATURES:

  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
