7.5HP BALDOR 1180RPM 256U TEFC 3PH SUPER-E MOTOR EM2276

7.5HP BALDOR 1180RPM 256U TEFC 3PH SUPER-E MOTOR EM2276

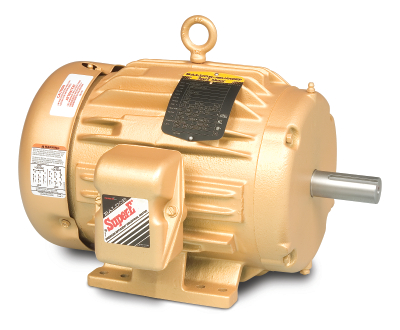

Picture is for reference only.

Part Number:

EM2276

Model/Spec Number:

09C111X827G1

Manufacturer:

ABB/Baldor
EM2276 BALDOR 7.5HP Electric Motor designed for pumps, fans, compressors, blowers, machine tools, conveyors and many other applications. Super-E Motors are designed to conserve energy over extended time periods.
MSRP: $7,254.00

Regular Price

USD

$

5,580

74

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

295 lbs

Dimensions:

17 x 36 x 22 inches

HS Code:

8501.52.4000

UPC:

781568792674

Technical Details

Brand:

Baldor

Application:

General Purpose

Output HP:

7.5

Output KW:

5.5

Output RPM:

1180

Frame Size NEMA:

256U

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

230/460

EM2276-InfoPacket

APPLICATIONS: Typical applications include pumps, fans, compressors, blowers, industrial machines, conveyors and other general purpose applications. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2.

FEATURES:

  • Ball bearings
  • 1 3/8" keyed output shaft
  • Heavy duty Cast Iron frame
  • Designed for longevity
  • U-Frame mounting dimensions
