60HP BALDOR 1775RPM 364JP OPSB 3PH SUPER-E PUMP MOTOR EJPM2547T

60HP BALDOR 1775RPM 364JP OPSB 3PH SUPER-E PUMP MOTOR EJPM2547T

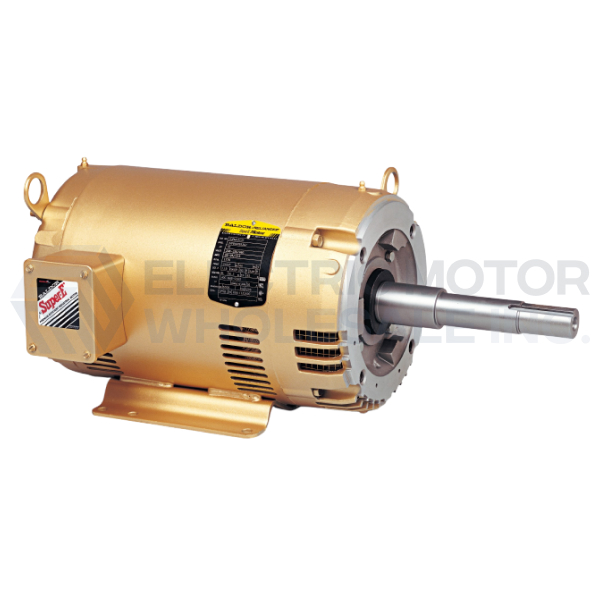

Picture is for reference only.

Part Number:

EJPM2547T

Model/Spec Number:

42G038W587G5

Manufacturer:

ABB/Baldor
EJPM2547T BALDOR 60HP Three Phase Close-Coupled Pump Electric Motor is for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.
MSRP: $12,269.00

Regular Price

USD

$

8,817

32

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

565 lbs

Dimensions:

28 x 40 x 24 inches

HS Code:

8501528040

UPC:

781568815724

Technical Details

Brand:

Baldor

Application:

Closed Coupled

Output HP:

60

Output KW:

45

Output RPM:

1775

Frame Size NEMA:

364JP

Mount NEMA:

C Face With Base

Enclosure NEMA:

OPSB

Enclosure IEC:

IP23

Voltage:

230/460//190/380

EJPM2547T-InfoPacket

APPLICATIONS:  Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

FEATURES:

  • Super-E Premium Efficient Motor
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Three year warranty
