15HP BALDOR 1760RPM 254T TEFC 3PH XT SEVERE DUTY MOTOR XT3154T

15HP BALDOR 1760RPM 254T TEFC 3PH XT SEVERE DUTY MOTOR XT3154T

Picture is for reference only.

Part Number:

XT3154T

Model/Spec Number:

09-0000-2719

Manufacturer:

Baldor Obsolete Motors
XT3154T BALDOR 15HP Three Phase XT Severe Duty motor is a severe duty motor that is designed for use with chemical, oil, gas, pulp & paper, coastal marine, and other applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

269 lbs

Dimensions:

24 x 30 x 22 inches

HS Code:

8501524000

UPC:

781568967188

Technical Details

Brand:

Baldor

Application:

Severe Duty

Output HP:

15//10

Output KW:

11.2

Output RPM:

1760//1460

Frame Size NEMA:

254T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

230/460//190/380

XT3154T-InfoPacket

Baldor XT Severe Duty Motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications such as Chemical, oil & gas, Pulp & paper, forest products, Metals & foundries, Cement, aggregate & above ground mining, Food processing, Power generation and Water & wastewater treatment.

Features:

  • Laser etched nameplate
  • Heavy duty cast iron construction
  • Compatible with ABB Ability™ smart sensor
  • Premium efficient electrical designs
  • Enhanced ingress protection
  • Corrosion resistant epoxy finish
  • Suitable for inverter use per NEMA MG1 Part 31.4.4.2

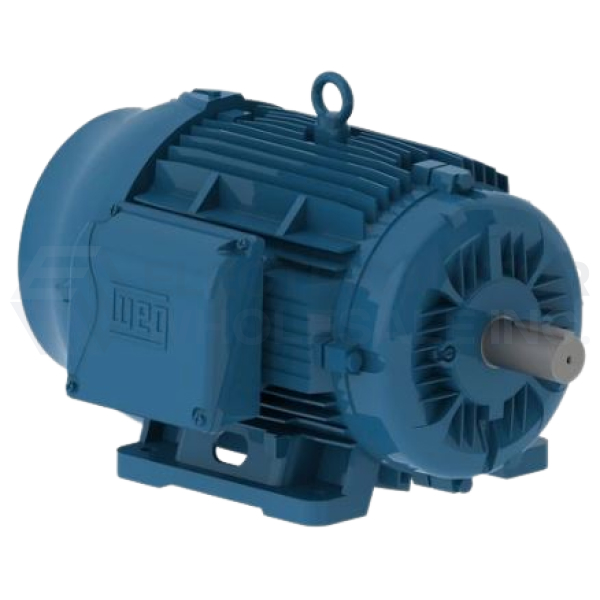

Image for 15HP WEG 1770RPM 254/6T TEFC 3PH MOTOR 01518ET3E254T-W22
