1.5HP BALDOR 1725RPM 184C XPFC 1PH EXPLOSION PROOF MOTOR CXL181542

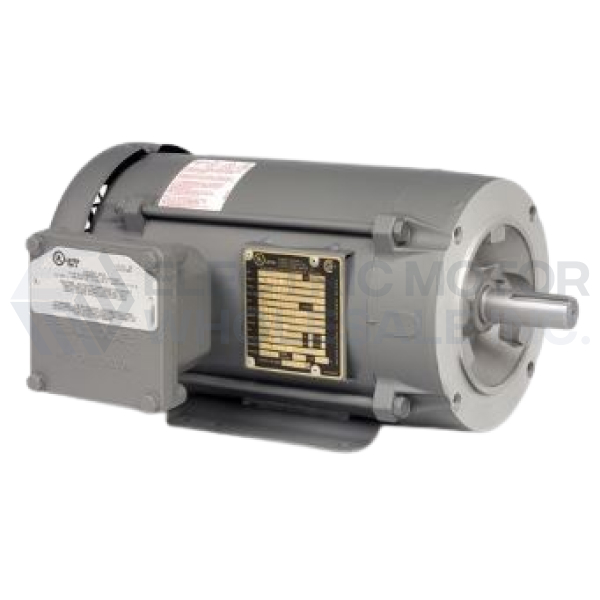

Picture is for reference only.

Part Number:

CXL181542

Model/Spec Number:

36N11-79G1

Manufacturer:

ABB/Baldor

CXL181542 BALDOR 1.5HP Single Phase Explosion Proof Motor is ideal for a wide variety of applications where hazardous fumes or dust may be present.

MSRP: $3,450.00

Regular Price

USD

$

2,520

80

QTY

Login to View Discounts

Shipping Details

Free No Rush Shipping

Weight:

93 lbs

Dimensions:

18 x 25 x 15 inches

HS Code:

8501.52.4000

UPC:

781568970133

Technical Details

Specifications

Application:	Explosion Proof
Output HP:	1.5
Output KW:	1.1
Output RPM:	1725
Frame NEMA:	184C
Mount NEMA:	C-Face With Base
Enclosure NEMA:	XPFC
Enclosure IEC:	IP54
Voltage:	115/230
Frequency (Hz):	60

Documentation

CXL181542-InfoPacket

Explosion Proof Definitions

Additional Information

ABB/BALDOR Single Phase Explosion Proof Motor is ideal for wide variety of pumps, fans and conveyor applications where hazardous location motors are required.

FEATURES:

Heavy duty steel frame
7/8" Keyed output shaft
Threaded lead inlet.
U.L. approved cast conduit box standard
Fixed speed operation.

Caution: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. If internal condensation buildup is a concern for your XP motor application, select a motor that includes UL listed breather drain.
