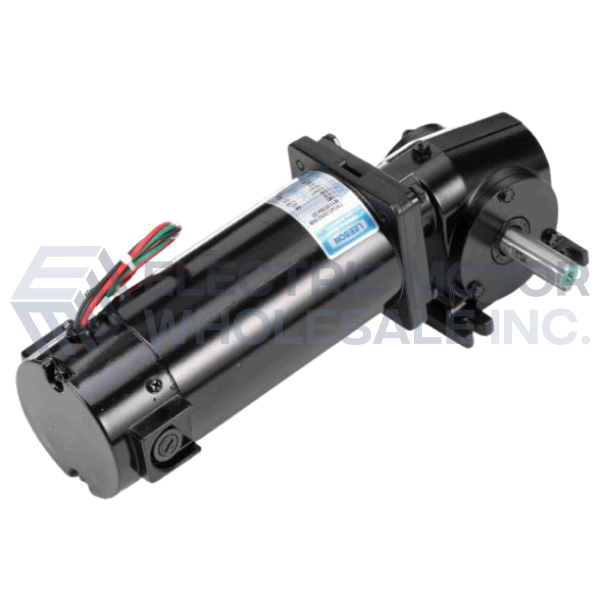

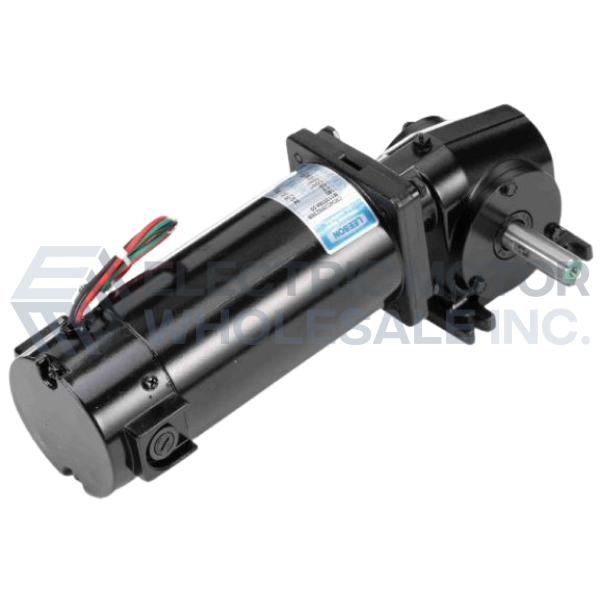

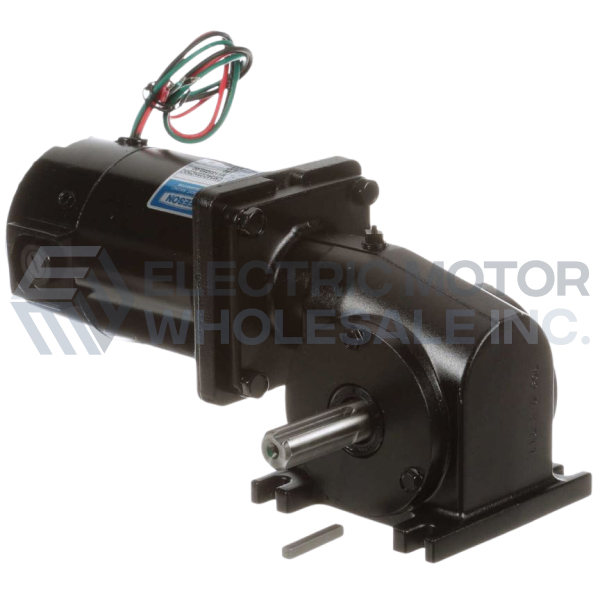

LEESON SUB-FHP DC Right Angle Gearmotors

BODINE/BISON/DAYTON
Direct Interchange

LEESON worm-type right-angle gearing features hardened steel worm with bronze worm wheel for long life and quiet operation. Precision machined aluminum housings are used. Gearbox has all ball bearings the housing is seal and lubrication is permanent with an oil bath. The output shaft is interchangeable from left hand style to right hand style by re-assembly.

Application Notes: Conduit box not supplied with motor. For optimum seal life, these right-angle gearmotors have a lubrication breather positioned for horizontal mounting. For other mountings, the breather-plug must be reoriented by using a 901/8” NPT taper pipe elbow (see drawing). Elbow not available from LEESON. Vent plug is available (part #M1900177_01) However, the motor portion of the gearmotor should never be mounted below the gearhead. Overhung load capacities shown are at center of output shaft.
