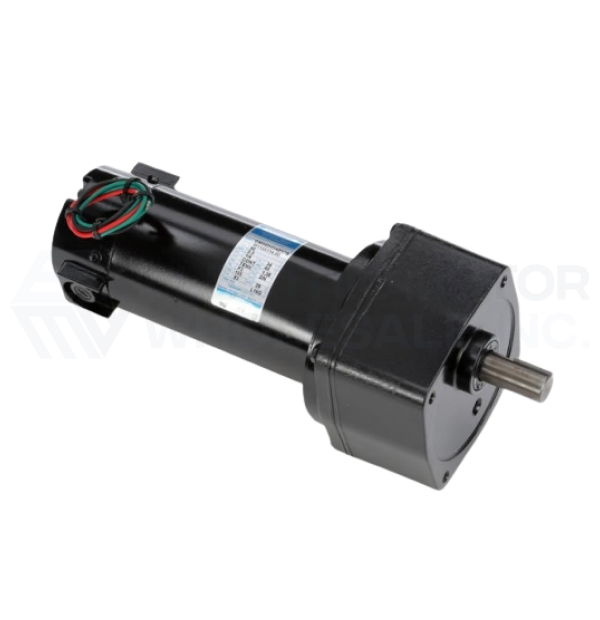

LEESON PE350 SERIES SUB-FHP DC Parallel Shaft Gearmotors
LEESON P350 SERIES Parallel Shaft DC Parallel Gearmotors
SCR Rated Gear Motors: 25-371 In-Lbs Torque
Totally enclosed, permanent magnet DC gearmotors, performance matched for continuous duty service over a 60:1 speed range.All have constant torque throughout the range when powered by a full-wave unfiltered SCR-type adjustable speed control having a typical form factor of 1.3 to 1.4
Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support. Precision machined gearing, hardened for maximum load capability. All gearing designed and rated to AGMA Class 9 standards and to withstand momentary shock overload of 200%. Oversized output bearings for greater overhung load capacity and longer life. High-carbon alloy output shaft provides maximum strength and rigidity. All needle bearing journals are precision-ground after heat treating, to provide maximum finish and fit. Heavy-duty industrial oil seals help keep lubricant in and dirt out. Gears and bearings are splash lubricated with permanent, heavy-duty gear oil. Conduit box not included with motor
These gearmotors are designed for mounting at any angle, but shaft up with motor below should be avoided to prevent leakage of lubricant into the motor should the motor shaft’s seal fail.
Overhung load capacities shown are at center of output shaft.
The motor's stall torque exceeds recommended full load torque. A current limiting device such as an SCR control should be used to prevent damage.
Model PE350 gearmotors have the same mounting dimensions as Bodine’s “E” box and many Baldor gearmotors.
