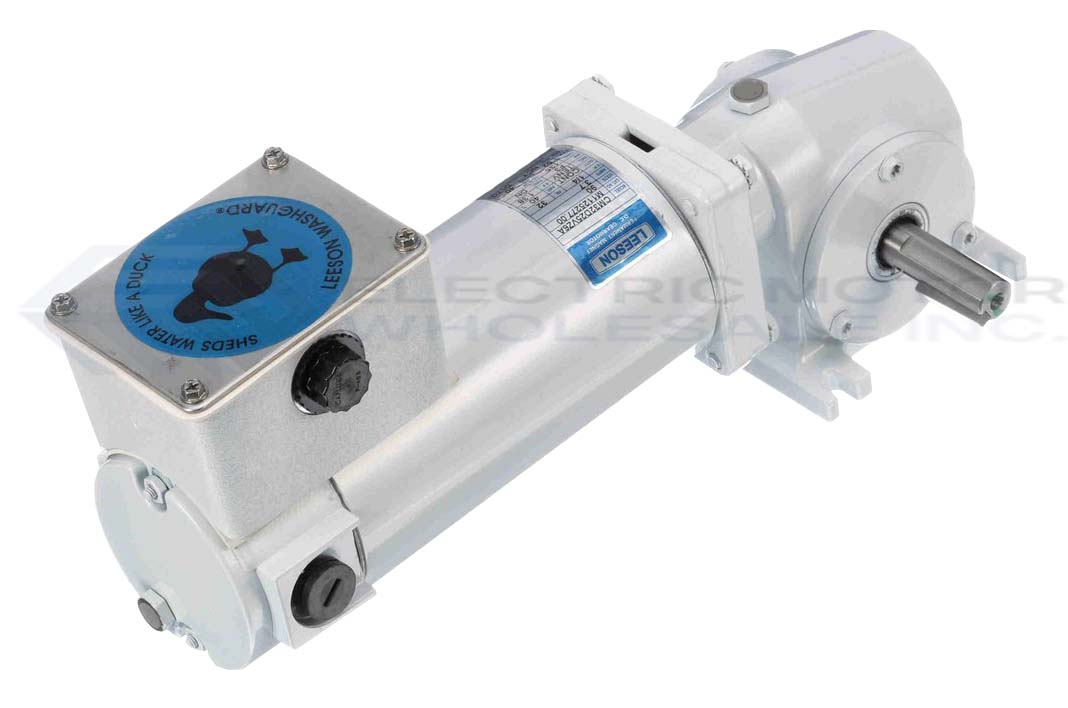

LEESON M1125280.00 WASHGUARD Right Angle Gearmotor

WhiteDuck IP55 WashGuard Series (12V)DC permanent magnet gearmotors rated for continuous duty. Designed for use with battery supplied low voltage for adjustable speed applications requiring constant torque throughout the speed range.

This Leeson Gearmotor is a Build To Order product and factory lead times are approximately 3-6 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.

LEESON WASHGUARD motors are designed for extended life in applications requiring regular washdown or otherwise wet environments. WASHGUARD motors retard the entrance of water. Extra protection for the motor’s interior prevents rust and corrosion build-up and releases trapped moisture to insure a longer life than possible with a standard motor. For optimum seal life, these right-angle gearmotors have a lubrication breather positioned for horizontal mounting. For other mountings, the breather plug must be reoriented by using a 90 1/8 NPT taper pipe elbow. See page 97 or 106 for diagram. Overhung load capacities shown are at center of the output shaft. The motor’s stall torque exceeds recommended full load torques for the gearboxes. A current limiting device should be used to prevent damage to the gear sets.

Leeson gearbox output shafts are 303 stainless steel. Frame, endshields, armature and interior components protected by enamel and polyester compounds for resistance to moisture, acids, alkalies and oil. Cast conduit box with threaded conduit holes and Nitrile gaskets keep water out. The conduit box cover is made from 304 stainless steel. For any condensation that may accumulate inside the motor, a one-way stainless steel vapor vent is provided. All hardware is stainless steel. Motor painted with epoxy for superior corrosion resistance and protection. Machined fits between the endbells and motor frame are sealed with gaskets. Thru-bolt heads and nuts sealed with fiber washers. O-rings under each threaded brush cover. This worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation. Precision machined aluminum housings are used. Gearbox has all ball bearings. The housing is sealed and lubrication is permanent with an oil bath.

RPM 62 Volts 12 Volts
HPKW 1/4 F.L. Amps 28 F.L. Amps
Frame 32 S. F Amps   S. F Amps
Max Amb 40 Hertz   Phase
Insul Class F3 Duty CONT TYPE DN
Model # CM32D25VZ9 Serv. Factor 1.0 PF
Eff 100%   Eff 75%   Enclosure TENV
Protection NOT Therm.Prot.   Bearing OPE 6201-13
Design   Code   Bearing PE 6201-13
UL Yes CSA Yes CE No
Torque lb-In 135 Nameplate M100414702 Lubrication POLYREX EM
Series 13 Overrlung Ld. 235 Shaft Type RIGHT-ANGLE
