3/4HP LEESON 3600RPM 56C 1PH WG SST MOTOR 191476.00

Catalog Number:  191476.00 - FREE Ground Shipping in USA
Model Number:  C6C34WK19A
Description:  3/4HP,3600RPM,56C,TEFC,1PH,60HZ,SST WASHGUARD
Ship Weight:  32 lbs.

LEESON Single Phase SST WASHGUARD Motor is built with all stainless steel external components to prevent corrosion and is well sealed against moisture and condensation to protect internal components. All-stainless motors are able to withstand the severe washdown environments found in the food processing, chemical processing and beverage industries.


  • C-Face mounting provisions with rigid base
  • 5/8" Keyed output shaft
  • Capacitor Start
  • 300 Series stainless steel exterior components: frame, base, endshields, shaft extension, fan guard, conduit box and cover
  • Coating applied to rotor and heavy polyester varnish applied to stator to prevent corrosion
  • Four condensate drains in each endshield
  • Double-sealed bearings with moisture-resistant high-temperature grease
  • UL Recognized and CSA Certified
  • Non-USA Manufactured, CN
  • Meets IP55 enclosure protection
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 230 Volts
F.L. Amps 9.2 F.L. Amps 4.6 F.L. Amps
S. F Amps 10.2 S. F Amps 5.1 S. F Amps
RPM 3600 Hertz 60
KW .56 Model # C6C34WK19A
Frame 56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 70 Eff 75%   PF 77
CC Number EXEMPT CE Yes Bearing PE
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 31.35 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID C Rotation SELECTIVE CCW
3/4HP LEESON 3600RPM 56C 1PH WG SST MOTOR 191476.00

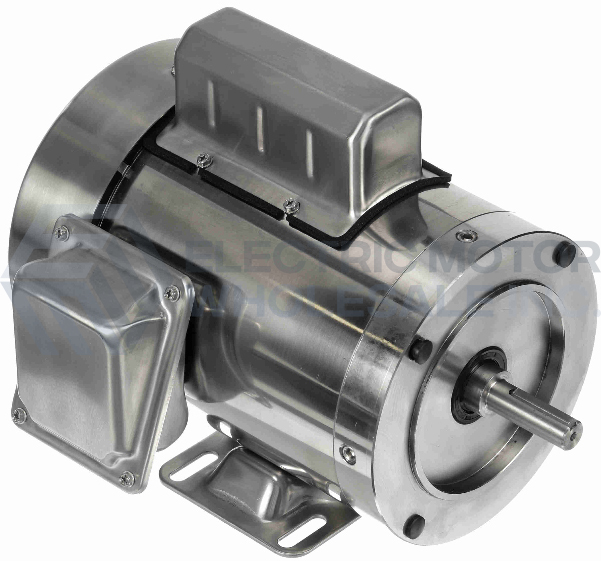

Click Image to Enlarge
