40HP MARATHON 3600RPM 324TS 230/460V TEFC 3PH MOTOR Y1616
40HP MARATHON 3600RPM 324TS 230/460V TEFC 3PH MOTOR Y1616

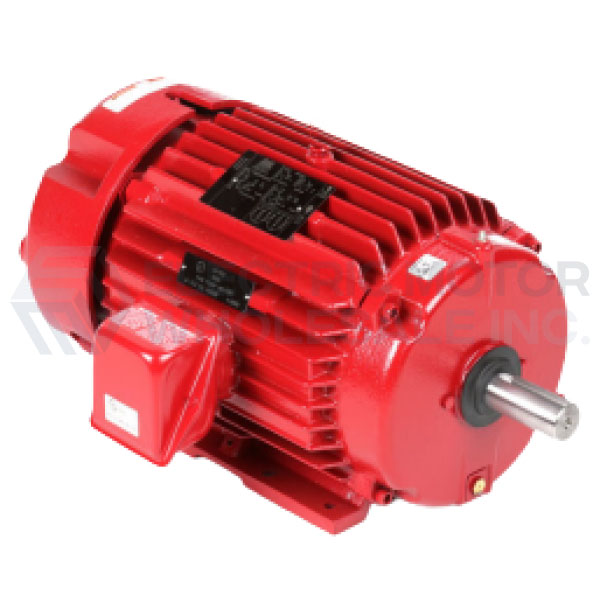

Picture is for reference only.
Part Number:
Y1616Manufacturer:
Marathon ObsoleteManufacturer Part Number:
Y1616This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Free No Rush Shipping
Dimensions:
12 x 20 x 12 inchesTechnical Details
Specifications
Application: | Farm Duty |
Output HP: | 40 |
Output RPM: | 1900-4000 (2P) |
Frame Size NEMA: | 324-6TS |
Mount NEMA: | With Base |
Enclosure NEMA: | TEFC |
Voltage: | 230, 230/460, 460 |
Frequency (Hz): | 50, 60 |
Efficiency: | IE1: Standard, IE2: High Eff. |
Thermal Protection: | None |
Documentation
Additional Information
Catalog Number:
Y1616
Description:
40HP,3600RPM,324TS,230/460V,TEFC,3PH,60HZ,FIRE PUMP
Ship Weight:
520 lbs.
This Marathon motor has factory lead times of approximately 5-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.
This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team .
APPLICATIONS: For use on pumps designed for fire pump duty and installed per NFPA-20. Fire Pump motors are not recommended for use with variable frequency drives.
FEATURES:
UL File EX5190, CSA File LR2025 and CE Mark
Ball bearings
1.15 Service Factor
Red paint exterior
NEMA Design B, Code G or less
Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage
Will accept C-Face kits
Efficiency levels meet EISA requirements
Rated 60/50 hertz, 190/380 or 380 volt at next lower
