35018XT3G449T WEG 350HP THREE PHASE EXPLOSION PROOF MOTOR 12408386

Electric Motors

Three Phase Electric Motors

WEG Motors Three Phase

WEG Three Phase Explosion Proof Motors

350HP WEG 1785RPM 449T TEFC 3PH EXPLOSION PROOF MOTOR 35018XT3G449T

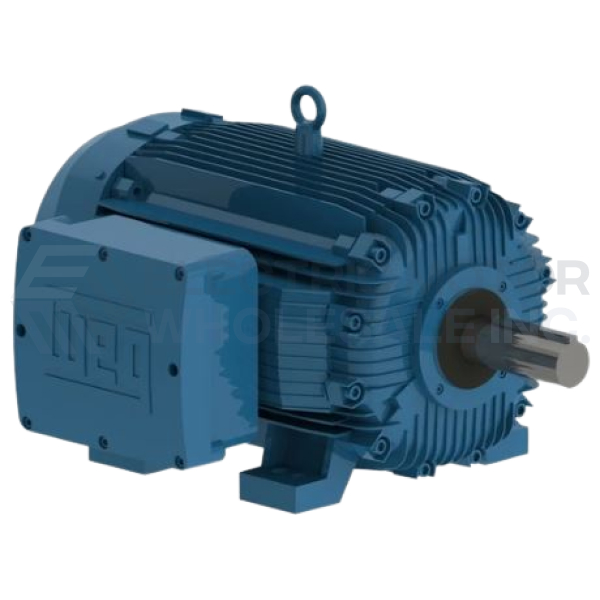

Picture is for reference only.

Part Number:

35018XT3G449T

Model/Spec Number:

12408386

Manufacturer:

WEG

35018XT3G449T WEG 350HP Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

MSRP: $53,222.00

Regular Price

USD

47,367

QTY

Weight:

3,494 lbs

Dimensions:

41 x 61 x 34 inches

HS Code:

8501.53.0000

UPC:

7892304607237

Technical Details

Product Information Packet

Weg Explosion Proof Motor Pamphlet

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Features:

NEMA Premium efficiency rating
Inverter Rated:
- Variable Torque - 1000:1 Class 1
- Constant Torque - 2:1 Class 1
3 3/8" Keyed output shaft
Durable IP55 rated cast iron enclosure
Class F insulation (impregnation resin and magnet wire are Class H)
Design A
Cannot be modified with T Box on opposite side
Thermostats
F1 mounted
Stainless steel nameplate - laser etched with high contrast background
Non-sparking fan
NPT threaded terminal box
Regreasable ball bearings (Frames 254T and up)
CSA Approved - File LR50962
- Class 1, Division 1, Groups C&D, T3C
- Class 2, Division 1, Groups F&G, T3C
UL Listed - File E87848
- Class 1, Division 1, Groups C&D
- UL modification available for Class 2
